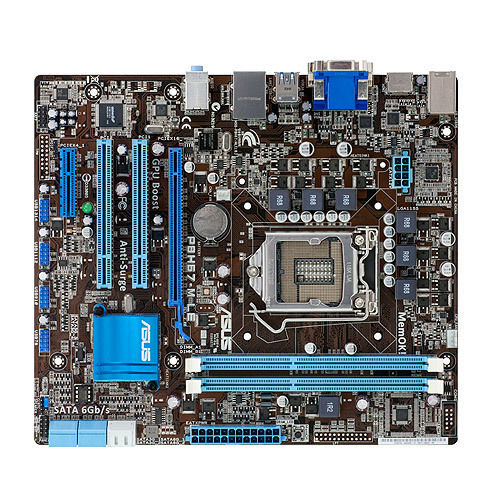

ASUS P8H67-M LE Intel® H67 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: 90-MIBEN0-G0EAYOGZ · MPN: 90-MIBEN0-G0EAYOGZ · Category: Components
ASUS P8H67-M LE, Intel, LGA 1155 (Socket H2), Intel® Core™ i5, DDR3-SDRAM, 16 GB, Non-ECC. ASUS P8H67-M LE Intel® H67 LGA 1155 (Socket H2) micro ATX (part number 90-MIBEN0-G0EAYOGZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 213 mm, width 244 mm, bios type AMI, pci slots 2, raid levels 0, 1, 5, 10, acpi version 2.0a, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 213 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 2 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8112L |
| BIOS memory size | 32 Mbit |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel® H67 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| PCI Express x4 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 213 mm |
Product Description
This motherboard supports the latest Intel® Sandy Bridge processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (2 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® Sandy Bridge processors are among the most powerful and energy efficient CPUs in the world. Chipset Inside] The Intel® H67 Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H67 provides 2 SATA 6.0 Gb/s and 4 SATA 3.0 Gb/s ports for faster data retrieval at double the bandwidth of current bus systems. HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content. DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor. The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS P8H67-M LE. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i5. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: Parallel ATA, SATA II, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8112L, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
