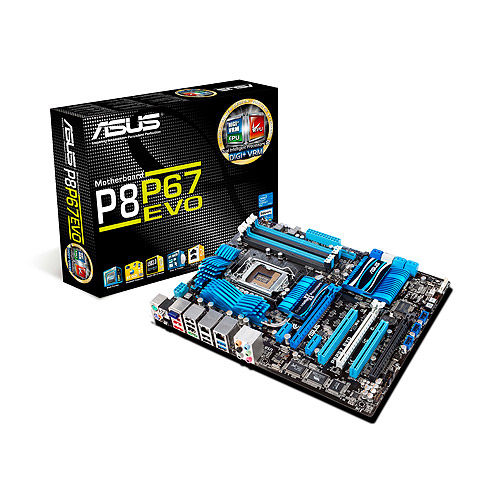

ASUS P8P67 EVO LGA 1155 (Socket H2) ATX
Brand: ASUS · SKU: 90-MIBDP0-G0EAY0KZ · MPN: 90-MIBDP0-G0EAY0KZ · Category: Components
ASUS P8P67 EVO, LGA 1155 (Socket H2), 32 GB, 1066,1333,1600,2133 MHz, 0, 1, 5, 10, Bluetooth v2.1 + EDR, ATX. ASUS P8P67 EVO LGA 1155 (Socket H2) ATX (part number 90-MIBDP0-G0EAY0KZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 244 mm, audio chip Realtek ALC892, raid levels 0, 1, 5, 10, acpi version 2.0, microphone in Yes, s/pdif out port Yes, bios memory size 32 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Bundled software | ASUS Update ASUS Utilities |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 6 |
| Networking features | Bluetooth v2.1 + EDR |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 2 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 3 |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
| Number of memory slots | 4 |
| On-board graphics card | No |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 305 mm |
Product Description
Digital Power Design: The New Standard The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). New generation Dual Intelligent Processors 2 with DIGI+ VRM digital power design launch control into a new era. The digital architecture delivers twice the precision power, intelligently adjusting PWM voltage and frequency modulation with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. It also adjusts VRM frequencies dynamically, cutting radiation interference by half and decreasing Vcore power noise for CPU to enhance system stability through enabling VRM spread spectrum. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency. DIGI+ VRM Herald the Arrival of a New Digital Power Design Era VRM, or voltage regulator modules, are considered among the most essential motherboard design components. They supply the voltage demanded by the CPU, and a good VRM must intelligently detect actual CPU power draw to provide precise power accordingly. ASUS DIGI+ VRM is an innovative, industry-leading technology that fully integrates Intel® VRD12 specifications on a native level, greatly enhancing power to go far beyond the limits of analog designs. ASUS DIGI+ VRM design features a digital programmable microprocessor onboard and upgrades motherboard power delivery to a digital standard. The 12+2 digital architecture delivers twice the precision power, intelligently adjusting PWM voltage and frequency modulation with minimal power loss through BIOS tuning and exclusive user interface to increase over-clocking range while performance reaches its full potential. It also adjusts frequencies dynamically, cutting radiation interference by half to enhance system stability through enabling spread spectrum. The DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance. extreme system stability, and greater power efficiency. Active Cooling for Extreme Durability- Super Cool VRM ASUS DIGI+ VRM delivers intelligent power management to balance loadings for each power phase by detecting VRM temperatures to ensure longer component lifespan and better cooling. EPU Energy Efficiency All Around Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
Key Features
ASUS P8P67 EVO. Processor socket: LGA 1155 (Socket H2). Maximum internal memory: 32 GB, Supported memory clock speeds: 1066,1333,1600,2133 MHz. RAID levels: 0, 1, 5, 10. Networking features: Bluetooth v2.1 + EDR. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC892
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8P67 EVO LGA 1155 (Socket H2) ATX (90-MIBDP0-G0EAY0KZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8P67 EVO LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8P67 EVO LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBDP0-G0EAY0KZ.
