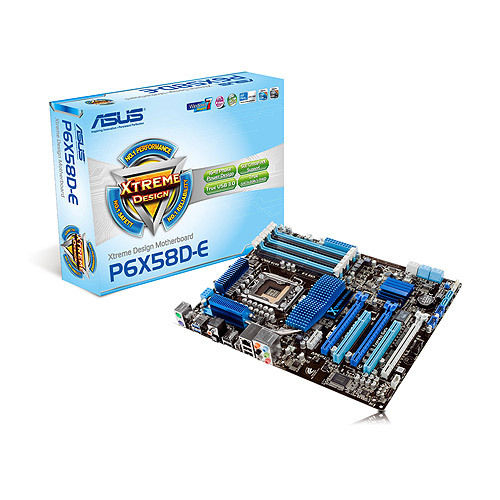

ASUS P6X58D-E Intel® X58 Socket B (LGA 1366) ATX
Brand: ASUS · SKU: 90-MIBD80-G0AAY00Z · MPN: 90-MIBD80-G0AAY00Z · Category: Components
ASUS P6X58D-E, Intel, Socket B (LGA 1366), Intel® Core™ i7, 6.4 GT/s, DDR3-SDRAM, 24 GB. ASUS P6X58D-E Intel® X58 Socket B (LGA 1366) ATX (part number 90-MIBD80-G0AAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type AMI, pci slots 2, audio chip Realtek ALC889, raid levels 0, 1, 5, 10, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| PCI slots | 2 |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Marvell 88E8056 |
| CD/AUX audio in | Yes |
| Cables included | SATA |
| Memory channels | Triple-channel |
| S/PDIF out port | Yes |
| System bus rate | 6.4 GT/s |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | Socket B (LGA 1366) |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® X58 |
| Networking features | Gigabit Ethernet |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
This motherboard supports the latest Intel® Core™ i7 processors in LGA1366 package with integrated memory controller to support 3-channel (6 DIMMs) DDR3 memory. Supports Intel® QuickPath Interconnect (QPI) with a system bus of up to 6.4 GT/s and a max bandwidth of up to 25.6 GB/s. Intel® Core™ i7 processor is one of the most powerful and energy efficient CPUs in the world. The Intel® X58 Express Chipset is one of the most powerful chipset designed to support the Intel® Core™ i7 Processors with LGA1366 package and Intel® next generation system interconnect interface, Intel® QuickPath Interconnect (QPI), providing improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It also supports up to 36 PCI Express 2.0 lanes providing better graphics performance. The P6X58D-E breaks the boundaries to bring you the multi-GPU choice of either SLI™ or CrossFireX. The motherboard features a dedicated graphics engine on the most powerful Intel X58 platform to optimize PCIe allocation in multiple GPU configurations. Expect a brand-new gaming style you’ve never experienced before! This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. Supporting next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems. Experience ultra-fast data transfers at 4.8Gbps with USB 3.0—the latest connectivity standard. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.
Key Features
ASUS P6X58D-E. Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366), Compatible processor series: Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 24 GB, Memory channels: Triple-channel. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 3-Way SLI, Quad-GPU CrossFireX. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Marvell 88E8056, Networking features: Gigabit Ethernet
