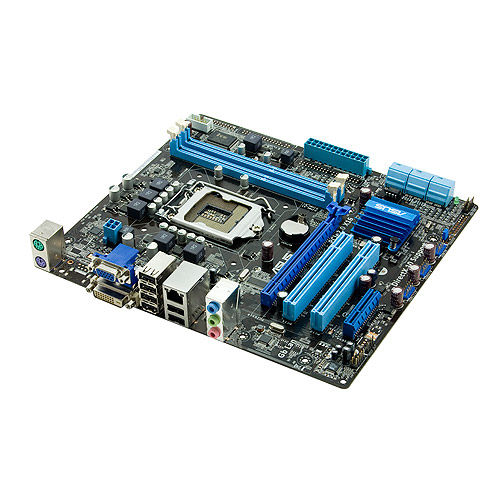

ASUS P7H55-M LX LGA 1156 (Socket H) micro ATX
Brand: ASUS · SKU: 90-MIBD75-G0EAY0GZ · MPN: 90-MIBD75-G0EAY0GZ · Category: Components
ASUS P7H55-M LX, LGA 1156 (Socket H), 8 GB, Non-ECC, 1066,1333 MHz, Realtek RTL8112L, Gigabit LAN. ASUS P7H55-M LX LGA 1156 (Socket H) micro ATX (part number 90-MIBD75-G0EAY0GZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 229 mm, audio chip VIA VT1708S, acpi version 2.0, lan controller Realtek RTL8112L, bios memory size 64 Mbit, processor socket LGA 1156 (Socket H), power source type ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 229 mm |
| Audio chip | VIA VT1708S |
| ACPI version | 2.0 |
| LAN controller | Realtek RTL8112L |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 1156 (Socket H) |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 6 |
| Networking features | Gigabit LAN |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| PCI Express x4 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Manageability features | WOR @ Ring, WOL, PXE, PME |
| Number of memory slots | 2 |
| On-board graphics card | Yes |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | micro ATX |
| Number of COM connectors | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 229 mm x 244 mm |
Product Description
LGA1156 Intel® Lynnfield / Clarkdale Processor Ready This motherboard supports the latest Intel® Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing higher graphics performance. Moreover, Intel® Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel® H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware. Intel H55 The Intel® H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel® Core™ i7/ Core™ i5/Core™ i3/ Pentium® Processors. Intel® H55 chipset improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Using Intel® Core™ i5 6 Series and Core™ i3 5 Series and Pentium® CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance! Anti-Surge Full-time Power Guardian- Make System Free From Risk! This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supply (PSU). Q-Fan2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. EZ Flash 2 Simply update BIOS from a USB flash before entering the OS EZ lash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. CrashFree BIOS 3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
Key Features
ASUS P7H55-M LX. Processor socket: LGA 1156 (Socket H). Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC, Supported memory clock speeds: 1066,1333 MHz. LAN controller: Realtek RTL8112L, Networking features: Gigabit LAN. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: VIA VT1708S. BIOS memory size: 64 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P7H55-M LX LGA 1156 (Socket H) micro ATX (90-MIBD75-G0EAY0GZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P7H55-M LX LGA 1156 (Socket H) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P7H55-M LX LGA 1156 (Socket H) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBD75-G0EAY0GZ.
