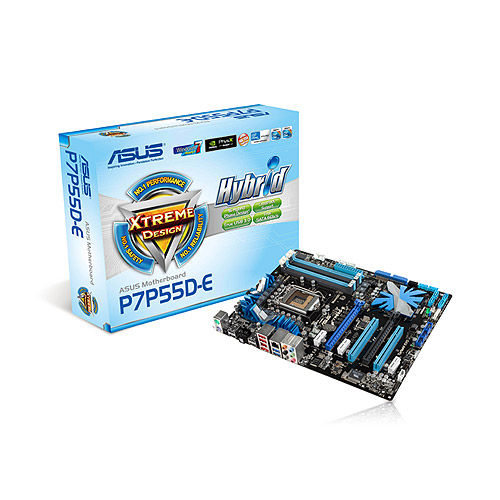

ASUS P7P55D-E Intel® P55 LGA 1156 (Socket H) ATX
Brand: ASUS · SKU: 90-MIBBN0-G0EAY00Z · MPN: 90-MIBBN0-G0EAY00Z · Category: Components
ASUS P7P55D-E, Intel, LGA 1156 (Socket H), 16 GB, Non-ECC, 0, 1, 5, 10, Realtek RTL8112L. ASUS P7P55D-E Intel® P55 LGA 1156 (Socket H) ATX (part number 90-MIBBN0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, pci slots 2, audio chip VIA VT1828S, raid levels 0, 1, 5, 10, microphone in Yes, lan controller Realtek RTL8112L, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 2 |
| Audio chip | VIA VT1828S |
| RAID levels | 0, 1, 5, 10 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8112L |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® P55 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Memory Features Dual-Channel DDR3 2200(O.C.) / 1600 / 1333 / 1066 support The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C.) / 1600 /1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. True SATA 6Gb/s Support Supporting next-generation Serial ATA (SATA) storage interface with onboard Marvell® controller, this motherboard delivers up to 6.0Gbps data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems. True USB 3.0 Support Experience ultra-fast data transfers at 4.8Gbps with USB 3.0--the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components. IO Level UP Turn on IO Level Up to boost the USB 3.0 or SATA 6Gb/s data transfer rate to up to 500MB/s! Users can flexibly switch between full-speed PCIe x16 mode for their graphics cards and IO Level UP for rapid data throughput.
Key Features
ASUS P7P55D-E. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB, ECC сompatibility: Non-ECC. RAID levels: 0, 1, 5, 10. LAN controller: Realtek RTL8112L, Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Motherboard chipset: Intel® P55, Audio output channels: 7.1 channels
