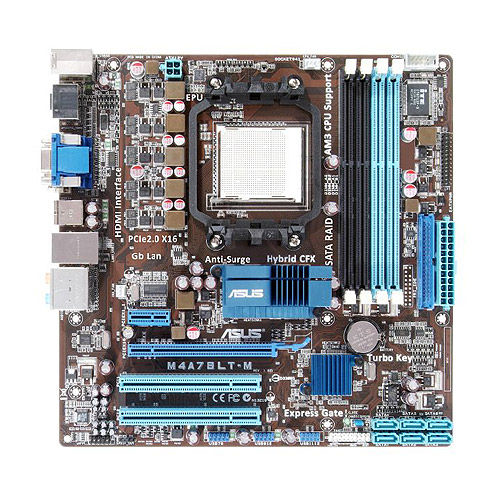

ASUS M4A78LT-M Socket AM3 micro ATX
Brand: ASUS · SKU: 90-MIBBJ0-G0EAY00Z · MPN: 90-MIBBJ0-G0EAY00Z · Category: Components
ASUS M4A78LT-M, AMD, Socket AM3, 16 GB, ECC & Non-ECC, Radeon HD 3000, Realtek RTL8112L. ASUS M4A78LT-M Socket AM3 micro ATX (part number 90-MIBBJ0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, bios type AMI, pci slots 2, audio chip VIA VT1708S, graphics card Radeon HD 3000, lan controller Realtek RTL8112L, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 2 |
| Audio chip | VIA VT1708S |
| Graphics card | Radeon HD 3000 |
| LAN controller | Realtek RTL8112L |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| On-board graphics card | Yes |
| Processor manufacturer | AMD |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
Phenom II/Athlon II/Sempron 100 Series Processors(Socket AM3) This motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process. Dual-Channel DDR3 1800(O.C.) The motherboard supports DDR3 memory that features data transfer rates of 1800+(O.C.)/1600(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 25.6 GB/s. Furthermore, the supply voltage for the memory is reduced from 1.8 V for DDR2 to just 1.5 V for DDR3. This voltage reduction limits the power consumption and heat generation of DDR3 which makes it an ideal memory solution. Hybrid CrossfireX Boosted Performance with onboard GPUand discrete graphics card. ATI Hybrid CrossFireX technology is a unique hybrid multi-GPU technology. It takes your gaming experience to the next level boosting PC performance by enabling the chipset’s integrated graphics processor and a discrete GPU to operate simultaneously with combined output for blisteringly-fast frame rates unleashing the graphics performance (For Windows Vista or later versions).
Key Features
ASUS M4A78LT-M. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. Graphics card: Radeon HD 3000. LAN controller: Realtek RTL8112L, Networking features: 10/100/1000 Mbps. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: VIA VT1708S
