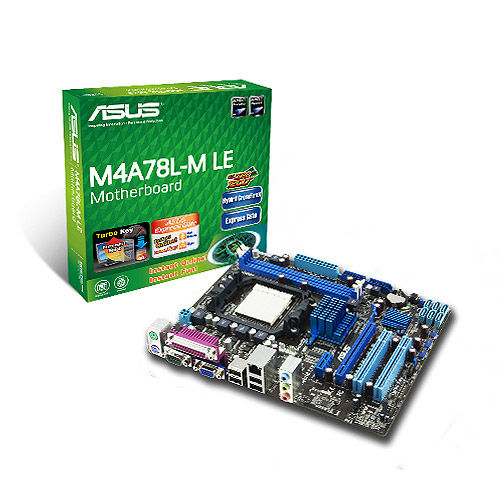

ASUS M4A78L-M LE AMD 760G Socket AM3 micro ATX
Brand: ASUS · SKU: 90-MIBB60-G0EAY00Z · MPN: 90-MIBB60-G0EAY00Z · Category: Components
ASUS M4A78L-M LE, AMD, Socket AM3, AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom X3, AMD Phenom X4, 5.2 GT/s, 8 GB, Dual-channel. ASUS M4A78L-M LE AMD 760G Socket AM3 micro ATX (part number 90-MIBB60-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 208 mm, width 244 mm, bios type AMI, pci slots 2, audio chip VIA VT1708S, raid levels 0, 1, 0+1, JBOD, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 208 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 2 |
| Audio chip | VIA VT1708S |
| RAID levels | 0, 1, 0+1, JBOD |
| ACPI version | 2.0a |
| Component for | PC |
| Graphics card | Radeon 3000 |
| Microphone in | Yes |
| Memory channels | Dual-channel |
| System bus rate | 5.2 GT/s |
| BIOS memory size | 8 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 760G |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 208 mm |
Product Description
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. This motherboard supports AMD® Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus, and AMD® Cool ´n´ Quiet™ Technology. The AMD 760G Northbridge is the latest AMD chipset designed for 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and external graphics in PCI Express™ 2.0 standard.It features the integrated ATI HD3000 graphics and fully DirectX 10.0 comliant. This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!! The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money!
Key Features
ASUS M4A78L-M LE. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom X3, AMD Phenom X4. Maximum internal memory: 8 GB, Memory channels: Dual-channel, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1, JBOD. Parallel processing technology support: Hybrid CrossFireX, Maximum graphics card memory: 1024 MB, Graphics card: Radeon 3000. Ethernet interface type: Gigabit Ethernet, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A78L-M LE AMD 760G Socket AM3 micro ATX (90-MIBB60-G0EAY00Z) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A78L-M LE AMD 760G Socket AM3 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A78L-M LE AMD 760G Socket AM3 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBB60-G0EAY00Z.
