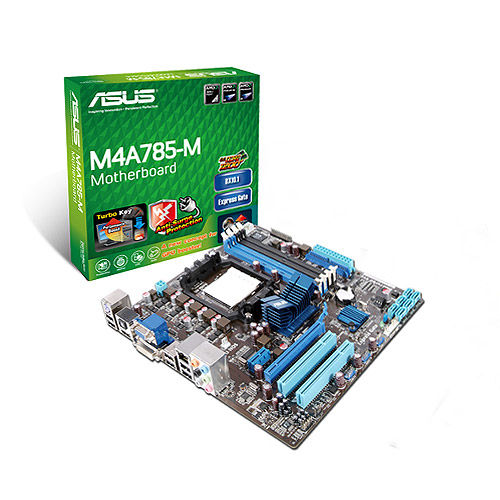

ASUS M4A785-M AMD 785G Socket AM2+ micro ATX

Specifications

Product Description

AMD Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. AMD® Phenom™ X4/ Phenom™ X3 / Athlon™ X2/ Athlon™/ Sempron™ processors (socket AM2+/AM2) This motherboard supports AMD® Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus, and AMD® Cool ´n´ Quiet™ Technology. AMD 785G chipset AMD® 785G / SB710 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT3.0) interface speed and PCI Express™ 2.0 x 16 graphics. It is optimized with AMD's latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. HyperTransport 3.0 Support HyperTransport™ 3.0 technology provides 2.6 times more bandwidth than HyperTransport™ 1.0, radically improving system efficiency to create a smoother, faster computing environment. Hybrid CrossFireX Support Boosted Performance with onboard GPU and discrete graphics card ATI Hybrid CrossFireX™ technology is a unique hybrid multi-GPU technology. It takes your gaming experience to the next level boosting PC performance by enabling the chipset’s integrated graphics processor and a discrete GPU to operate simultaneously with combined output for blisteringly-fast frame rates unleashing the graphics performance (Windows Vista® OS only). HDMI/DVI/RGB Support Flexible Graphics Alternatives This motherboard supports multiple digital and analog display output interfaces - HDMI, DVI, and D-Sub. With such diversity of display outputs, you are able to choose and upgrade display devices freely. HDMI Support Enjoy Full HD 1080p Multimedia Home-Theater Entertainment High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience. O.C. DDR2 1200 To attain top performance, ASUS engineers have successfully unleashed DDR2 1200(O.C.) MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. Gigbit LAN The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. 8-CH High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. S/PDIF-out on Back I/O Port This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality. Max. 12 USB 2.0 ports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. AMD Cool ´n´ Quiet! Technology M4A785-M supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. GPU NOS GPU NOS technology intelligently detects graphic loading and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, GPU NOS reacts much faster to satisfy your need for graphic power. Turbo Key ASUS Turbo Key allows the user to turn the PC power button into a physical overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!! EPU-4 Engine System Level Energy Saving The new ASUS EPU - the wor

Key Features

ASUS M4A785-M. Processor manufacturer: AMD, Processor socket: Socket AM2+. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 1+0, JBOD. Parallel processing technology support: Hybrid CrossFireX, Maximum graphics card memory: 512 MB, Graphics card: Radeon HD 4200. LAN controller: Realtek RTL8112L, Networking features: Gigabit Ethernet
