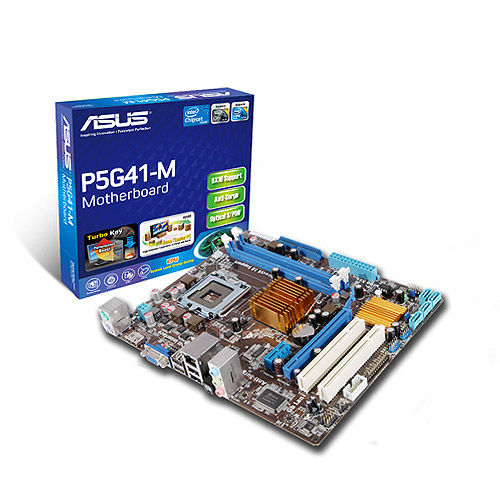

ASUS P5G41-M LGA 775 (Socket T) micro ATX
Brand: ASUS · SKU: 90-MIBAA0-G0EAY0KZ · MPN: 90-MIBAA0-G0EAY0KZ · Category: Components
ASUS P5G41-M, Intel, LGA 775 (Socket T), 8 GB, Non-ECC, GMA X4500, micro ATX. ASUS P5G41-M LGA 775 (Socket T) micro ATX (part number 90-MIBAA0-G0EAY0KZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 198 mm, width 244 mm, acpi version 2.0, graphics card GMA X4500, microphone in Yes, s/pdif out port Yes, bios memory size 64 Mbit, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 198 mm |
|---|---|
| Width | 244 mm |
| ACPI version | 2.0 |
| Graphics card | GMA X4500 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | micro ATX |
| Number of COM connectors | 1 |
| Number of SATA connectors | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 198 mm |
Product Description
LGA775 Intel® Core™2 Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1333/1066/800MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. HDMI™ Interface HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content.The interface of this motherboard supports dual VGA output both HDMI and RGB. Intel® G41 Chipset The Intel® G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(O.C)/800 / 667 architecture, 1333 / 1066 / 800 FSB (Front Side Bus), and multi-core CPUs. It is embeded with the next-generation Intel® Graphics Media Acceleratior X4500. The Intel® G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel® Fast Memory Access technology the significantly optimized the use of available memory bandwith and reduces the latency of the memory accesses. EPU-L The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money! ASUS Innovative FeaturesFeatures ASUS Q-Fan Adjusts both CPU fan and chassis fan speeds according to system loading ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. Turbo Key Touch n Boost! ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!! MyLogo 2 Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. ASUS CrashFree BIOS 3 Simply restore corrupted BIOS data from USB flash disk The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. EZ Flash 2 Simply update BIOS from a USB flash disk before entering the OS EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
Key Features
ASUS P5G41-M. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC. Graphics card: GMA X4500. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Power source type: ATX. BIOS memory size: 64 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5G41-M LGA 775 (Socket T) micro ATX (90-MIBAA0-G0EAY0KZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5G41-M LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5G41-M LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBAA0-G0EAY0KZ.
