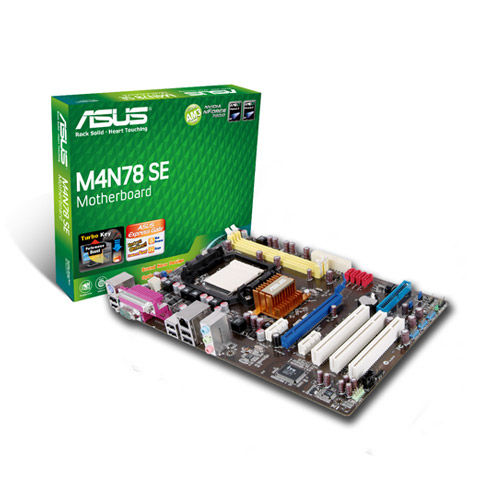

ASUS M4N78 SE Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB7R0-G0EAY00Z · MPN: 90-MIB7R0-G0EAY00Z · Category: Components
ASUS M4N78 SE, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 0+1, 5, JBOD, Gigabit Ethernet. ASUS M4N78 SE Socket AM2 ATX (part number 90-MIB7R0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 304 mm, bios type AMI, pci slots 3, audio chip Realtek ALC662, raid levels 0, 1, 0+1, 5, JBOD, microphone in Yes, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 304 mm |
| BIOS type | AMI |
| PCI slots | 3 |
| Audio chip | Realtek ALC662 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 304 mm x 193 mm |
Product Description
AMD® Phenom™ II/Athlon™ X4/Athlon™ X3/ Athlon™ X2 (AM3 CPU) This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. AMD® Phenom™ X4/ Phenom™ X3 / Athlon™ X2/ Athlon™/ Sempron™ processors (socket AM2+/AM2) This motherboard supports AMD® Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus, and AMD® Cool ´n´ QuietTM Technology. HyperTransport 3.0 Support HyperTransport™ 3.0 technology provides 2.6 times more bandwidth than HyperTransport™ 1.0, radically improving system efficiency to create a smoother, faster computing environment. Dual channel DDR2 1066 DDR2 1066 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology. EPU The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money! AMD Cool ´n´ Quiet! Technology M4N78 SE supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. NVIDIA® nForece® 720D MCP78D supports HyperTransport™ 3.0 interface, PCI Express™ 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMD´s latest AM2+ and multi-core CPUs to provide excellent system performance. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification, allowing RAID 0, RAID 1,RAID 0+1,RAID 5 and JBOD configurations for four SATA connectors. PCIe 2.0 support This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. ASUS EZ Flash2 Simply update BIOS from a USB flash disk before entering the OS With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. ASUS CrashFree BIOS3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. ASUS Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. AI NET2 Diagnose LAN connection before entering OS! AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy. MyLogo2 Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS M4N78 SE. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1, 5, JBOD. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 5.1 channels, Audio chip: Realtek ALC662
