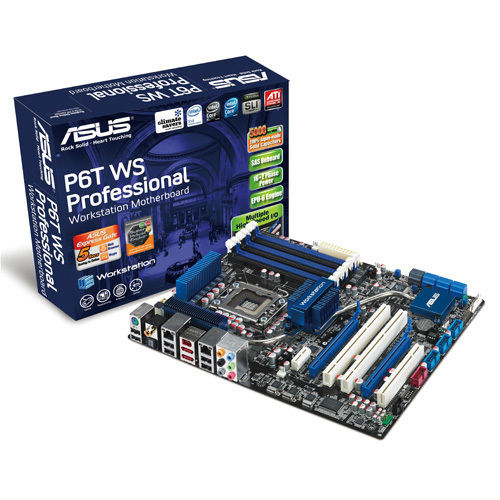

ASUS P6T WS Professional Intel® X58 Socket B (LGA 1366) ATX
Brand: ASUS · SKU: 90-MIB6Q0-G0EAY0YZ · MPN: 90-MIB6Q0-G0EAY0YZ · Category: Components
ASUS P6T WS Professional, Intel, Socket B (LGA 1366), Intel® Xeon®, 6.4 GT/s, DDR3-SDRAM, 24 GB. ASUS P6T WS Professional Intel® X58 Socket B (LGA 1366) ATX (part number 90-MIB6Q0-G0EAY0YZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, bios type AMI, pci slots 1, audio chip ADI AD2000B, pci-x slots 2, raid levels 0, 1, 5, 10, acpi version 2.0a. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| PCI slots | 1 |
| Audio chip | ADI AD2000B |
| PCI-X slots | 2 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111C |
| CD/AUX audio in | Yes |
| Memory channels | Triple-channel |
| S/PDIF out port | Yes |
| System bus rate | 6.4 GT/s |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | Socket B (LGA 1366) |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® X58 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
The ASUS Workstation Series is the ideal foundation for a powerful PC. It delivers awesome power, dependable performance and unparallel multiple I/O scalability for the most demanding tasks and future upgrades. Also, it provide extreme power saving experience with EUP 6 Engine function. The ASUS Workstation Series intelligently reduces operation noise and dissipates heat through advanced and environmentally friendly methods to accommodate user needs. Don´t change yourself for a computer. Instead, let ASUS Workstation Series improves the quality of your work and life. Diag. LED checks key components (CPU, DRAM, VGA card, and HDD) in sequence during motherboard booting process. If an error is found, the LED next to the error device will continue lighting until the problem is solved. This usr-friendly design provides an intuitional way to locate the root problem within a second. Brightly and vividly lighting LEDs shine around the ASUS brand name on the motherboard after successful booting process. With the breath-like deep blue lighting shining in regular tempo, ASUS Heartbeat makes the motherboard as vivid as life. P6T WS Professional provides users with onboard SAS ports to support for hard drive upgration flexibility. SAS hard drive has safer, faster and more reliability for data trasfer and storage. PCI-X, the new and improved version of the previous PCI, offers faster data transfers and enhanced system reliability. It is backwards compatible with PCI-based hardware and software. This motherboard is fully compatible with ASUS SAS card (the SASsaby card series, optional). Faster, safer and more stable, SAS will provide users with a better choice for storage expansion and upgrade needs.
Key Features
ASUS P6T WS Professional. Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366), Compatible processor series: Intel® Xeon®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 24 GB, Memory channels: Triple-channel. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way SLI, Quad-GPU SLI. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111C, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P6T WS Professional Intel® X58 Socket B (LGA 1366) ATX (90-MIB6Q0-G0EAY0YZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P6T WS Professional Intel® X58 Socket B (LGA 1366) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P6T WS Professional Intel® X58 Socket B (LGA 1366) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB6Q0-G0EAY0YZ.
