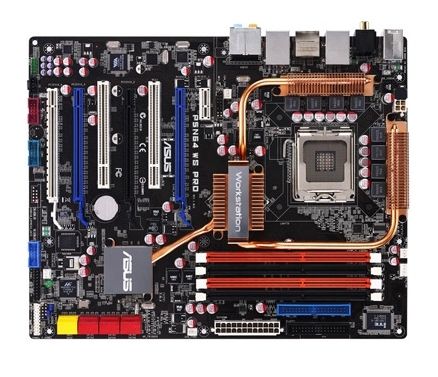

ASUS P5N64 WS Professional LGA 775 (Socket T) ATX
Brand: ASUS · SKU: 90-MIB4E0-G0EAY00Z · MPN: 90-MIB4E0-G0EAY00Z · Category: Components
ASUS P5N64 WS Professional, Intel, LGA 775 (Socket T), Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® D, 8 GB, Non-ECC, 4 MB. ASUS P5N64 WS Professional LGA 775 (Socket T) ATX (part number 90-MIB4E0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include audio chip ADI AD1988B, raid levels 0, 1, flash memory 4 MB, lan controller Marvell 88E1116, expansion slots 4 x PCI EXPress x16 (2.0) 1 x PCI EXPress x1 2 x PCI, s/pdif out port Yes, processor socket LGA 775 (Socket T), power source type ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Audio chip | ADI AD1988B |
|---|---|
| RAID levels | 0, 1 |
| Flash memory | 4 MB |
| LAN controller | Marvell 88E1116 |
| Expansion slots | 4 x PCI EXPress x16 (2.0) 1 x PCI EXPress x1 2 x PCI |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| PS/2 ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
| eSATA ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® D |
| Warranty | 3-Year Warranty |
Product Description
SAS Onboard P5N64 WS Professional provides users with onboard SAS ports to support for hard drive upgrade flexibility. ASUS HE 95 With the whole new power design - HE 95, this motherboard is anle to achieve 95%+ power efficiency in light loading mode and 90%+ in full/heavy loading mode. No software or driver required, the hardware-based HE 95 automatically saves power for users. G.P. Diagnosis Card (bundled) Bundled with the P5E64 WS Professional motherboard, the G.P. Diagnosis card assists users in system checking by effortlessly and quickly providing precise system checks right after they switch on their PCs. ASUS SASsaby Card Support This motherboard is fully compatible with ASUS SAS card (the SASsaby card, optional). Faster, safer and more stable, SAS will provide users with a better choice for storage expansion and upgrade needs. LGA775 Intel® 45nm Processor Ready This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency. LGA775 Intel® Core™2 Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. PCIe 2.0 This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. ASUS EPU Enables the Most Energy Efficient Motherboard in the World The ASUS EPU utilizes innovative technology to digitally monitor and finetune the CPU power supply with improved VR responses in heavy or light loadings. Working together with AI Gear 3, it automatically provides power for higher performance or improves efficiency by 50% when the PC is running low intensity applications - helping you attain the best possible power efficiency and energy savings of up to 80.23% to help save the environment. New Generation 8-Phase Power Design Genuine 8-Phase Power Design Excels at Power Efficiency The ASUS 8-Phase Power Design provides highly efficient operation to generate less heat (at least 15°C (27°F)) than other conventional power solutions. It reduces input ripple current and output ripple voltage, which keeps CPU and power module from suffering the risk of high power stress. It has the advantages of quick transient response and stability, especially beneficial when CPU requires more current immediately under heavy loading or overclocking mode. Up to 20°C(36°F) Cooler - Stack Cool 2 Effective Fanless Heat Dissipation at 0dB Stack Cool 2 is a fanless cooling solution offered exclusively by ASUS. It effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 20°C. Pure Copper Heat Pipe Lowers Temperatures by up to 10°C The Pure Copper Heat Pipe design effectively directs the heat generated by the chipsets to the heatsink near the back I/O ports - where it can be carried away by existing airflows from the CPU or a bundled optional fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures by up to 10°C without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date. Q-Fan 2 Adjusts both CPU fan and chassis fan speeds according to system loading ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. AI Nap Minimize noise and power consumption when temporarily away! With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while you´re sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
Key Features
ASUS P5N64 WS Professional. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® D. Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC, Flash memory: 4 MB. RAID levels: 0, 1. LAN controller: Marvell 88E1116. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: ADI AD1988B
