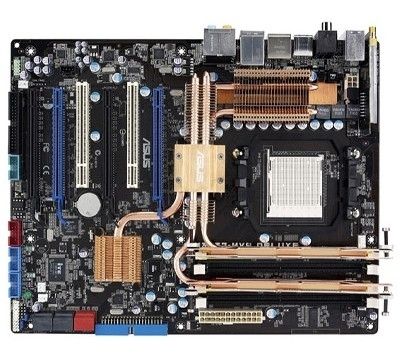

ASUS M3A32-MVP Deluxe/WiFi-AP Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB210-G0EAY00Z · MPN: 90-MIB210-G0EAY00Z · Category: Components
ASUS M3A32-MVP Deluxe/WiFi-AP, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 0+1, Gigabit Ethernet, Wi-Fi. ASUS M3A32-MVP Deluxe/WiFi-AP Socket AM2 ATX (part number 90-MIB210-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, audio chip ADI AD1988, raid levels 0, 1, 0+1, microphone in Yes, cd/aux audio in Yes, expansion slots 4 x PCIe x16 + ATI CrossFireX 2 x PCI 2.2, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| Audio chip | ADI AD1988 |
| RAID levels | 0, 1, 0+1 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 4 x PCIe x16 + ATI CrossFireX 2 x PCI 2.2 |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | ASUS PC Probe II ASUS Update ASUS AI Suite ASUS WiFi-AP Solo Wizard |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 2 |
| Networking features | Gigabit Ethernet, Wi-Fi |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| WiFi-AP antenna jack | 1 |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Overclocking features | - AI NOS - SFS - ASUS C.P.R. |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Supports AMD® Socket AM2+ Phenom™ FX / Phenom X4 / Phenom X2 / Athlon™ X2 / Sempron™ This motherboard supports AMD AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. Supports AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron This motherboard supports AMD® Socket AM2 single-core Athlon™ 64 / Sempron™ and dual-core Athlon™ 64 X2 / Athlon™ 64 FX processors with 2MB / 1MB / 512KB L2 cache based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport™-based system bus, dual-channel un-buffered DDR2 800 memory support, and AMD® Cool ‘n’ Quiet™ Technology. AMD 790FX Chipset AMD 790FX Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and quad PCI Express™ 2.0 x16 graphics. It is optimized with AMD latest AM2+ and multi-core CPUs to provide excellent system performance and overclocking capabilities. ATI CrossFireX™ Technology ATI’s CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher anti-aliasing, anisotropic filtering, shading, and texture settings. Adjust your display configurations, experiment with the advanced 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS M3A32-MVP Deluxe/WiFi-AP. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1. Networking features: Gigabit Ethernet, Wi-Fi. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: ADI AD1988
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M3A32-MVP Deluxe/WiFi-AP Socket AM2 ATX (90-MIB210-G0EAY00Z) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M3A32-MVP Deluxe/WiFi-AP Socket AM2 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M3A32-MVP Deluxe/WiFi-AP Socket AM2 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB210-G0EAY00Z.
