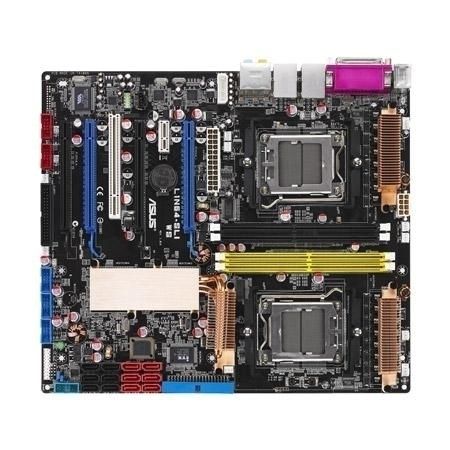

ASUS L1N64-SLI WS Socket L1 ATX
Brand: ASUS · SKU: 90-MIB160-G0AAY00T · MPN: 90-MIB160-G0AAY00T · Category: Components
ASUS L1N64-SLI WS, AMD, Socket L1, 8 GB, ECC & Non-ECC, 2 x Marvell 88E1116 PHY, ATX
Specifications
| Depth | 267 mm |
|---|---|
| Width | 305 mm |
| Audio chip | ADI AD1988B |
| CD/AUX audio in | Yes |
| Expansion slots | 4 x PCI Express x16 (x16, x8, x16, x8) 1 x PCI-E x 1 1 x PCI 2.2 |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket L1 |
| CPU fan connector | Yes |
| EZ plug connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| Networking features | 2 x Marvell 88E1116 PHY |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Manageability features | WOL (PME), WOR (PME), PXE, AI NET2 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Parallel ports quantity | 1 |
| Controller interface type | Serial ATA |
| Ethernet LAN (RJ-45) ports | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 267 mm |
Product Description
Supports AMD Dual Socket L1 Athlon 64 FX CPU L1N64-SLI WS supports AMD Dual Socket L1 Athlon 64 FX processors which is based on 64-bit architecture. It features 2000/1600 MT/s HyperTransport Bus and dual-channel un-buffered DDR400 memory support. Currently. Dual-Core CPU Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 caches to satisfy the rising demand for more powerful processing capability. NVIDIA nForce® 680a SLITM Chipset The NVIDIA nForce® 680a SLI™ chipset supports the NVIDIA® Scalable Link Interface (SLI™) technology that allows two graphics processing units (GPUs) in a single system. It's designed for enthusiast gamers, extreme overclocking capability, ultimate gaming performance with SLI technology support. It's definitely one of the fastest platform in the world. NVIDIA SLI™ Technology NVIDIA SLI™ (Scalable Link Interface) takes advantage of the increased bandwidth of the PCI Express bus architecture and features intelligent hardware and software that allows two GPUs to efficiently work together to deliver earth-shattering, scalable performance. For some applications nearly 2X performance! (From www.NVIDIA.com) Native DDR2 800 Support To attain top performance, ASUS engineers successfully unleashed the true potential of DDR2 memory. Native DDR2 800 maximizes system performance by eliminating the bottleneck when overclocking both the CPU and memory, providing great performance for 3D graphics and other memory demanding applications. Advanced Thermal Design ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, Northbridge and Southbridge.
Key Features
ASUS L1N64-SLI WS. Processor manufacturer: AMD, Processor socket: Socket L1. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. Networking features: 2 x Marvell 88E1116 PHY. Motherboard form factor: ATX, Audio chip: ADI AD1988B, Power source type: ATX. BIOS memory size: 64 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS L1N64-SLI WS Socket L1 ATX (90-MIB160-G0AAY00T) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS L1N64-SLI WS Socket L1 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS L1N64-SLI WS Socket L1 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB160-G0AAY00T.
