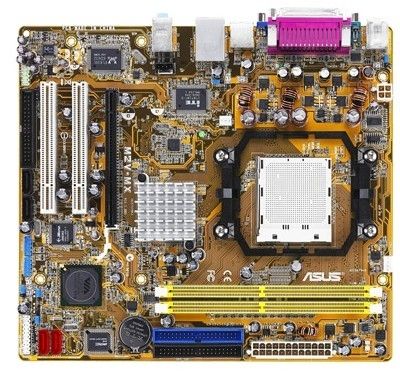

ASUS M2V-MX Socket AM2 micro ATX
Brand: ASUS · SKU: 90-MIB090-G0EAYZ · MPN: 90-MIB090-G0EAYZ · Category: Components
ASUS M2V-MX, AMD, Socket AM2, 2000 MHz, 4 GB, ECC & Non-ECC, 0, 1, JBOD. ASUS M2V-MX Socket AM2 micro ATX (part number 90-MIB090-G0EAYZ) is an enterprise components product available from Server Tech Central. Key specifications include audio chip Realtek ALC883, raid levels 0, 1, JBOD, microphone in Yes, cd/aux audio in Yes, expansion slots 1x PCI Express x16 2x PCI, bios memory size 32 Mbit, bundled software Drivers Anti-Virus (OEM) ASUS LiveUpdate, processor socket Socket AM2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Audio chip | Realtek ALC883 |
|---|---|
| RAID levels | 0, 1, JBOD |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCI Express x16 2x PCI |
| BIOS memory size | 32 Mbit |
| Bundled software | Drivers Anti-Virus (OEM) ASUS LiveUpdate |
| Processor socket | Socket AM2 |
| Special features | ASUS EZ Flash 2 ASUS Crashfree BIOS 2 C.P.R. Q-Fan2 ASUS MyLogo |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Serial ports quantity | 1 |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, PXE, RPL, WOR PME |
| Number of memory slots | 2 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Warranty | 3-Year Warranty |
Product Description
Supports AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron The motherboard supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology. AMD Cool 'n' Quiet! Technology Supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. 64-bit CPU support 64-bit computing, the next generation technology to replace current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture. DDR2 800 Support DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications. Serial ATA 3Gb/s M2V-MX supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. Furthermore, the chipset has two dedicated SATA controllers delivering more scalable performance and doubles the bus bandwidth for fast hard drive data retrieval and saves. Coaxial S/PDIF out This motherboard provides convenient connectivity to external home theater audio systems via an coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality. ASUS MyLogo You can convert your favorite photo into a 16-color boot logo for a more colorful and vivid image on your screen. Max. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. 10/100 Mbps LAN Supports Easy connectivity to your network or broadband connection with onboard LAN port, lets you take gaming online without buying expensive additional LAN cards. ASUS EZ Flash 2 With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required. ASUS Q-Fan 2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. GreenASUS The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment. Vista Ready To stay in step with Windows Vista™ hardware requirements, ASUS motherboards are optimized for the ultimate user experiences. With excellent stability, compatibility, and performance, ASUS motherboards provide a powerful platform to run Windows Vista.
Key Features
ASUS M2V-MX. Processor manufacturer: AMD, Processor socket: Socket AM2, Processor system buses supported: 2000 MHz. Maximum internal memory: 4 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, JBOD. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Audio chip: Realtek ALC883. BIOS memory size: 32 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M2V-MX Socket AM2 micro ATX (90-MIB090-G0EAYZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M2V-MX Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M2V-MX Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB090-G0EAYZ.
