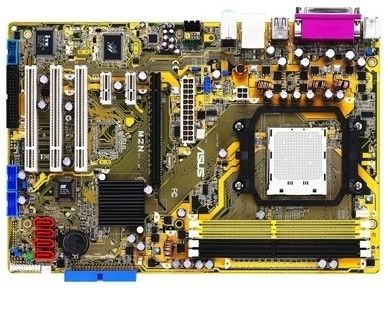

ASUS M2N Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB020-G0EAYGZ · MPN: 90-MIB020-G0EAYGZ · Category: Components
ASUS M2N, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 0+1, Gigabit Ethernet. ASUS M2N Socket AM2 ATX (part number 90-MIB020-G0EAYGZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 206 mm, width 350 mm, raid levels 0, 1, 0+1, microphone in Yes, cd/aux audio in Yes, expansion slots - 1 x PCIe x16 - 2 x PCIe x1 - 3 x PCI 2.2, s/pdif out port Yes, bundled software Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID Anti-virus (OEM). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 206 mm |
|---|---|
| Width | 350 mm |
| RAID levels | 0, 1, 0+1 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | - 1 x PCIe x16 - 2 x PCIe x1 - 3 x PCI 2.2 |
| S/PDIF out port | Yes |
| Bundled software | Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID Anti-virus (OEM) |
| Processor socket | Socket AM2 |
| Special features | Q-FAN2 Q-Connector ASUS CrashFree BIOS3 ASUS EZ Flash2 ASUS Fanless Design ASUS MyLogo |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Manageability features | WOL PME, WOR PME, Chasis Intrusion, PXE |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 350 mm x 206 mm |
Product Description
Supports AMD Socket AM2 Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron The M2N supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology Dual-Core CPU The advanced processing technology contains two physical CPU cores with individually dedicated L2 caches to satisfy the rising demand for more powerful processing capability. Dual-Channel DDR2 800 DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications. AMD Cool 'n' Quiet! Technology Supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. Fanless Design - Provide a cool environment without all the baggage Cooling fans, though a popular thermal solution, also come with noise and malfunction likelyhood. ASUS Motherboard's fansless concept is specifically created to provide a cool environment without all the baggage. ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, Northbridge and Southbridge. The heat sinks and strategic board layout are tailor made to dissipate heat in the most efficient manner. ASUS Q-Fan 2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. Gigbit LAN The NVIDIA native Gigabit LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice. 6 Channel High Definition Audio Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output. Serial ATA 3Gb/s RAID This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard NVIDIA nForce® 430 MCP allows RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD configurations for four SATA connectors. Max. 10 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. S/PDIF-out on Back I/O Port This motherboard provides convenient connectivity to external home theater audio systems via an coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality. ASUS Q-Connector The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate. ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. ASUS EZ Flash 2 EZ Flash 2 is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. GreenASUS The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
Key Features
ASUS M2N. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 5.1 channels, Power source type: ATX
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M2N Socket AM2 ATX (90-MIB020-G0EAYGZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M2N Socket AM2 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M2N Socket AM2 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB020-G0EAYGZ.
