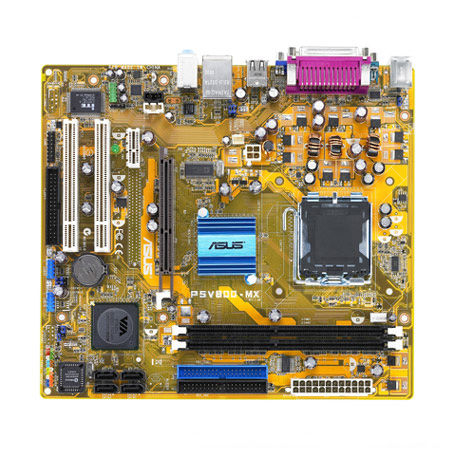

ASUS P5V800-MX PE4 Socket775 FSB800 VIA P4M800 LGA 775 (Socket T) micro ATX
Brand: ASUS · SKU: 90-MBL3M0-G0EAYZ · MPN: 90-MBL3M0-G0EAYZ · Category: Components
ASUS P5V800-MX PE4 Socket775 FSB800, Intel, LGA 775 (Socket T), 2 GB, 64 MB, Realtek RTL8201CL 10/100 LAN Controller, micro ATX. ASUS P5V800-MX PE4 Socket775 FSB800 VIA P4M800 LGA 775 (Socket T) micro ATX (part number 90-MBL3M0-G0EAYZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 218 mm, width 245 mm, audio chip ADI AD1986A, raid levels 1, cd/aux audio in Yes, expansion slots 1 x AGP8X/4X (1.5V) 1 x PCI Express x1 2 x PCI, PCI 2.2, bios memory size 32 Mbit, bundled software ASUS PC Probe ASUS LiveUpdate Utility Anti-virus software (OEM version). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 218 mm |
|---|---|
| Width | 245 mm |
| Audio chip | ADI AD1986A |
| RAID levels | 1 |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x AGP8X/4X (1.5V) 1 x PCI Express x1 2 x PCI, PCI 2.2 |
| BIOS memory size | 32 Mbit |
| Bundled software | ASUS PC Probe ASUS LiveUpdate Utility Anti-virus software (OEM version) |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| GAME/MIDI connector | Yes |
| Graphics controller | VIA UniChrome Graphics |
| Motherboard chipset | VIA P4M800 |
| Networking features | Realtek RTL8201CL 10/100 LAN Controller |
| PS/2 ports quantity | 2 |
| RAID controller type | VIA VT8251 South Bridge |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Manageability features | Power Loss Restart CrashFree BIOS 2 ASUS Q-Fen ASUS EZ Flash WOL by PME,WOR by PME, Chassis Intrusion, PXE, RPL |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 218 mm |
Product Description
The most cost-effective all-in-one solution on 775 platform Intel LGA775 Pentium 4 CPU This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 800/ 533MHz FSB, Hyper-Threading Technology and core-speeds up to 3.8GHz and beyond, Intel's LGA775 Pentium 4 is one of the fastest desktop processors to date. (Note: Due to chipset limitation, the Intel Enhanced Intel SpeedStep Technology, C1E, and TM2 are not supported in this model) Dual-Core CPU Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability. 64-bit CPU support 64-bit computing, the next generation technology to replace current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture. Powerful Integrated Graphics This motherboard delivers powerful integrated 2D and 3D graphics performance for functionality and value. Serial ATA 3Gb/s RAID The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The onboard VIA VT8251 southbridge allows RAID 0, RAID 1, RAID 0+1 and JBOD configuration for four SATA 3Gb/s connectors. AGP8X AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth up to 2.12GB/s. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI interface. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems. SoundMAX High Definition Audio SoundMAX is the highest performing, most reliable and user-friendly PC audio solution for business professionals, audiophiles, musicians, and gamers. Hear crystal-clear quality from all your audio - MP3 playback, home theatre, advanced gaming, VOIP and more, and never worry - SoundMAX high-definition audio is there to enhance your experience! ASUS Q-Fan Technology ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise. Max. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. ASUS CrashFree BIOS2 The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.
Key Features
ASUS P5V800-MX PE4 Socket775 FSB800. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 2 GB. Maximum graphics card memory: 64 MB. Networking features: Realtek RTL8201CL 10/100 LAN Controller. Motherboard form factor: micro ATX, Motherboard chipset: VIA P4M800, Audio output channels: 5.1 channels
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5V800-MX PE4 Socket775 FSB800 VIA P4M800 LGA 775 (Socket T) micro ATX (90-MBL3M0-G0EAYZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5V800-MX PE4 Socket775 FSB800 VIA P4M800 LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5V800-MX PE4 Socket775 FSB800 VIA P4M800 LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MBL3M0-G0EAYZ.
