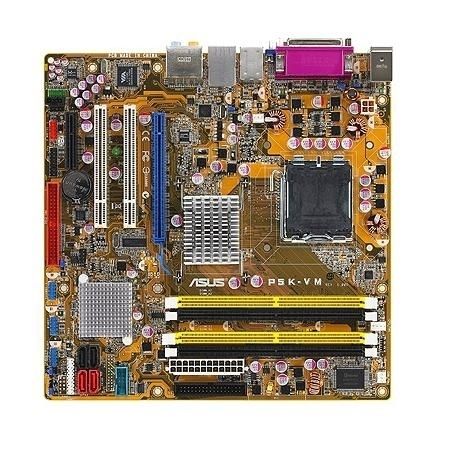

ASUS P5K-VM LGA 775 (Socket T) ATX
Brand: ASUS · SKU: 90-MBB6N0-G0AAY00Z · MPN: 90-MBB6N0-G0AAY00Z · Category: Components
ASUS P5K-VM, Intel, LGA 775 (Socket T), 8 GB, Non-ECC, 256 MB, GMA 3100. ASUS P5K-VM LGA 775 (Socket T) ATX (part number 90-MBB6N0-G0AAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, audio chip Realtek ALC883, graphics card GMA 3100, lan controller Marvell 88E8056, cd/aux audio in Yes, s/pdif out port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC883 |
| Graphics card | GMA 3100 |
| LAN controller | Marvell 88E8056 |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 6 |
| Networking features | PCIe Gigabit LAN |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 4 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
LGA775 Intel® Quad-core Processor Ready This motherboard supports the latest Intel® Quad-core processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. It´s excellent for multi-tasking, multi-media and enthusiastic gamers with 1333 / 1066/800 MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world. LGA775 Intel® Core™2 Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. Intel® G33 Chipset The Intel® G33 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel® Graphics Media Accelerator 3100. It supports 1333MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel® Clear Video Technology - which trailblazes new standards in high-definition video, crisp imaging, and accurate color control. Native DDR2 1066 Support To attain top performance, ASUS engineers have successfully unleashed the true potential of DDR2 memory. While in DDR2 1066 mode, ASUS´s exclusive technology offers a choice of FSB 1333 - providing great performance for 3D graphics and other memory demanding applications. IEEE 1394a interface IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
Key Features
ASUS P5K-VM. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC. Maximum graphics card memory: 256 MB, Graphics card: GMA 3100. LAN controller: Marvell 88E8056, Networking features: PCIe Gigabit LAN. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC883
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5K-VM LGA 775 (Socket T) ATX (90-MBB6N0-G0AAY00Z) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5K-VM LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5K-VM LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MBB6N0-G0AAY00Z.
