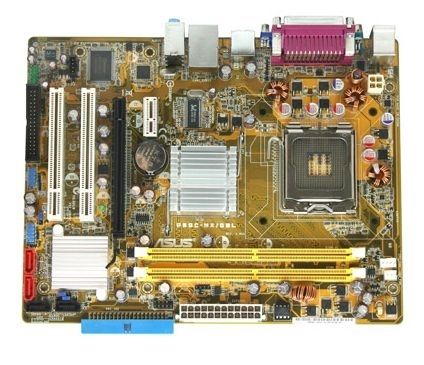

ASUS P5GC-MX/GBL LGA 775 (Socket T) micro ATX
Brand: ASUS · SKU: 90-MBB60U-G0EAY0GZ · MPN: 90-MBB60U-G0EAY0GZ · Category: Components
ASUS P5GC-MX/GBL, Intel, LGA 775 (Socket T), 4 GB, Non-ECC, micro ATX, 5.1 channels. ASUS P5GC-MX/GBL LGA 775 (Socket T) micro ATX (part number 90-MBB60U-G0EAY0GZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 188 mm, width 245 mm, cd/aux audio in Yes, bios memory size 64 Mbit, processor socket LGA 775 (Socket T), cpu fan connector Yes, power source type ATX, ecc сompatibility Non-ECC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 188 mm |
|---|---|
| Width | 245 mm |
| CD/AUX audio in | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 4 |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| Audio output channels | 5.1 channels |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Parallel ports quantity | 1 |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 188 mm |
Product Description
Best Performance of All-in-one Solution MB P5GC-MX/GBL with Intel 945GC chipset inside supports Intel dual-core CPU and features 1333MHz FSB(O.C.), PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 memory, HD Audio CODEC and Gigabit lan . Users can experience faster graphics performance and higher video quality today. P5GC-MX/GBL is the most affordable all in one solution platform for Intel® Core™2 Processor with Intel 945GC chipset inside. Dual-Core CPU Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability. Intel® 945GC Chipset The Intel 945GC graphics memory controller hub(GMCH) and the ICH7 I/O controller hub provide the vital interfaces for the motherboard. The GMCH features the Intel Graphics Media Accelerator 950, an integrated graphics engine for enhanced 3D, 2D, and video capabilities. The GMCH contains one 16-lane PCI Express port intended for an external PCI Express graphics card and provides the interface for processor in the 775-land package with 1333/1066/800/533MHz FSB, dual channel DDR2 at speeds of up to 667MHz. Intel Graphics Media Accelerator 950 The Intel Graphics engine has new capabilities that provide a significant increase in graphics performance. DirectX 9 hardware acceleration, 400MHz core clock, and up to 224MB of video memory all together provide a full-value, high performance graphic solution to you. Through a dual-independent display technology, different content can be displayed on each monitor or stretched across both displays for more workspace. Dual-Channel DDR2 667 Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems. High Definition Audio Enjoy high-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. Serial ATA 3Gb/s This motherboard supports SATA hard drives based on the new SATA 3Gb/s storage specification.Allows RAID 0, RAID 1,RAID 10 and JBOD configurations for two SATA connectors. Max. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. EZ-Flash 2 Simply update BIOS from a USB flash disk before entering the OS EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. CrashFree BIOS 3 Simply restore corrupted BIOS data from USB flash disk The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. MyLogo2 Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS P5GC-MX/GBL. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB, ECC сompatibility: Non-ECC. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Power source type: ATX. BIOS memory size: 64 Mbit. Width: 245 mm, Depth: 188 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5GC-MX/GBL LGA 775 (Socket T) micro ATX (90-MBB60U-G0EAY0GZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5GC-MX/GBL LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5GC-MX/GBL LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MBB60U-G0EAY0GZ.
