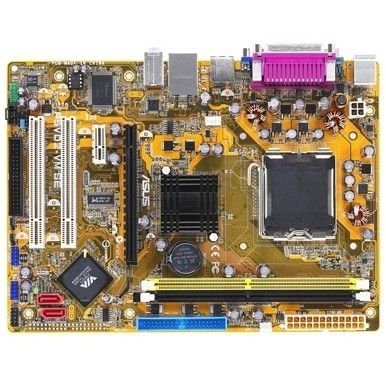

ASUS P5VD2-VM SE VIA P4M900 LGA 775 (Socket T) micro ATX
Brand: ASUS · SKU: 90-MBB59A-G0EAY00Z · MPN: 90-MBB59A-G0EAY00Z · Category: Components
ASUS P5VD2-VM SE, Intel, LGA 775 (Socket T), Non-ECC, 0, 1, JBOD, 256 MB, micro ATX. ASUS P5VD2-VM SE VIA P4M900 LGA 775 (Socket T) micro ATX (part number 90-MBB59A-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 178 mm, width 244 mm, audio chip Realtek ALC662, raid levels 0, 1, JBOD, microphone in Yes, cd/aux audio in Yes, expansion slots 1x PCIe x16 1x PCIe x1 2x PCI 2.2, bios memory size 32 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 178 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC662 |
| RAID levels | 0, 1, JBOD |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCIe x16 1x PCIe x1 2x PCI 2.2 |
| BIOS memory size | 32 Mbit |
| Bundled software | ASUS PC Probe II ASUS LiveUpdate |
| Processor socket | LGA 775 (Socket T) |
| Special features | CrashFree BIOS 2 ASUS EZ Flash ASUS Q-Fan MyLogo |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | VIA P4M900 |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Manageability features | WOL @ PME, WOR @ PME, PXE |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 178 mm |
Product Description
Intel LGA775 Pentium 4 CPU This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066/ 800/ 533MHz FSB, Hyper-Threading Technology and core-speeds up to 3.6GHz and beyond, Intel´s LGA775 Pentium 4 is one of the fastest desktop processors to date. Intel Core™2 Duo This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPUs in the world. Support Dual-Core CPU This motherboard supports Intel® Pentium® D/Pentium® 4/Celeron® dual-core processors built on the 65-nanometer (nm) process technology with copper interconnect. Dual-core processors contain two physical CPU cores with dedicated L2 caches to meet demands for more powerful processing. Intel®´s 65nm process is the most advanced chip manufacturing technology, delivering breakthrough performance, enhanced media experience, and low power consumption. Intel® 65nm dual-core processors utilize the latest package technologies for a thinner, lighter design without compromising performance. Single-Channel DDR2 DDR2 is the next generation memory technology to replace the current DDR. With initial speeds from 667MHz, DDR2 memory provides bandwidth up to 5.3GB/s. Powerful Integrated Graphics The P5VD2-VM SE delivers powerful integrated 2D and 3D graphics engine that provides hight performance along with functionality and value. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. High Definition Audio Enjoy six-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, multi-streaming feature. SATA 3Gb/s RAID The VIA VT8237S chipsets incorporate two SATA 3Gb/s ports with high performance RAID functions in RAID 0, 1 and JBOD. This motherboard is the ideal solution to enhance hard disk performance and data back up protection without the cost of add-on cards. ASUS CrashFree BIOS 2 The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. ASUS EZ Flash EZ Flash is a user-friendly BIOS update utility. Simply press the predefined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. ASUS Q-Fan ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise. Green ASUS RoHS Compliant The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS P5VD2-VM SE. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). ECC сompatibility: Non-ECC. RAID levels: 0, 1, JBOD. Maximum graphics card memory: 256 MB. Motherboard form factor: micro ATX, Motherboard chipset: VIA P4M900, Audio output channels: 5.1 channels
