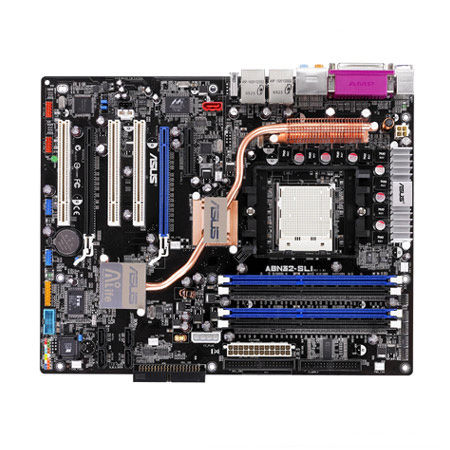

ASUS A8N32-SLI Deluxe AMD Socket939 ATX
Brand: ASUS · SKU: 90-M9L1E0-G0EAY · MPN: 90-M9L1E0-G0EAY · Category: Components
ASUS A8N32-SLI Deluxe AMD Socket939 ATX, AMD, Socket 939, 4 GB, Dual Gigabit LAN Marvell 88E8053 PCI-E Gigabit LAN & Wireless 54 Mbps IEEE 802.11g, ATX, 7.1 channels. ASUS A8N32-SLI Deluxe AMD Socket939 ATX (part number 90-M9L1E0-G0EAY) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, audio chip Realtek ALC850, audio output Coaxial / Optical S/PDIF, cd/aux audio in Yes, expansion slots 2 x PCI-E x16 with SLI, x16, x16 1 x PCI-E x4 (PCI-E x4 / PCI-E x1) 3 x PCI 2.2, s/pdif out port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC850 |
| Audio output | Coaxial / Optical S/PDIF |
| CD/AUX audio in | Yes |
| Expansion slots | 2 x PCI-E x16 with SLI, x16, x16 1 x PCI-E x4 (PCI-E x4 / PCI-E x1) 3 x PCI 2.2 |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | ASUS PC Probe II ASUS Update ASUS AI Booster NV RIS (Remote Installation Service) application NV Firewall NV RAID Anti-virus software (OEM version) |
| Processor socket | Socket 939 |
| CPU fan connector | Yes |
| EZ plug connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 4 |
| GAME/MIDI connector | Yes |
| Networking features | Dual Gigabit LAN Marvell 88E8053 PCI-E Gigabit LAN & Wireless 54 Mbps IEEE 802.11g |
| PS/2 ports quantity | 2 |
| RAID controller type | RAID 0, 1, 0+1, 5 & JBOD - Serial ATA Silicon Image 3132 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
True Dual X16 SLI - The ultimate enthusiast platform The innovative AMD solution brings you enjoyable gaming experience. The A8N32-SLI Deluxe supports dual PCI Express x16 slots running at full speed to liberate graphics cards from the narrow bandwidth platform of x8 speed only. It not only inherited AI Life series features, such as Stack Cool 2 and SATA on the Go, but also some new innovations, including 8-Phase Power Design and Fanless Design. With ASUS' innovative designs to bring out the real potential of NVIDIA nForce™4 SLI X16 chipsets, gamers can easily enjoy faster graphics performance and higher video quality today, and be ready for the even more demanding tasks of tomorrow! Corsair XMS-3500LL PRO Ready The new XMS-3500LL PRO is the industry's first high-density memory that delivers blazing performance at CL2-1T low latency. Available in a matched pair of 1GB modules, it is shipped with SPD programmed at 2-3-2 -6-1T for the AMD platform. The A8N32-SLI Deluxe and the memory are optimized for each other to reach maximum performance, and are validated for stability and compatibility. AI Life AI Life Series - Gaming Edition motherboards bring lifestyle and personal computing together. This motherboard provides you better system performance to enjoy graphics-intensive games and applications. To create a peaceful environment, several new and improved innovations are also included to reduce noise and temperature. Don't change your way of life for a computer. Instead let the ASUS Life Series improve the quality of your life. True Dual X16 SLI True Dual X16 SLI - The ultimate enthusiast platform The A8N32-SLI Deluxe supports dual PCI Express x16 slots running at full speed to liberate graphics cards from the narrow bandwidth platform of x8 speed only. With ASUS' innovative designs to bring out the real potential of NVIDIA nForce4 SLI X16 chipsets, gamers can easily enjoy faster graphics performance and higher video quality today, and be ready for the even more demanding tasks of tomorrow! 8 Phase Power Design - Cooler and quieter system - Longer components lifespan - More stable and reliable under heavy-loading and overclocking The ASUS 8-Phase Power Design provides highly efficient operation to generate less heat (at least 15°C (36°F)) than other conventional power solutions. It reduces input ripple current and output ripple voltage, which keeps CPU and power module from suffering the risk of high power stress. It has the advantages of quick transient response and stability, especially beneficial when CPU requires more current immediately under heavy loading or overclocking mode. Fanless Design - Heat Pipe & Stack Cool 2 - Complete quiet cooling - Zero failure - Excellent heat dissipation The Heat Pipe design effectively directs the heat generated by the chipsets to the heatsink near the back IO ports, where it can be carried away by existing airflow from CPU fan. ASUS STACK COOL 2 effectively transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board). The purpose of the innovative fanless designs is to decrease the number of fans and therefore reducing the noise from the system. Furthermore, the groundbreaking fanless designs do not have lifetime problems as a fan does. To guarantee excellent thermal performance, ASUS adopts copper heat pipes and copper pads for the chipsets. These fanless designs are the most reliable fanless thermal solutions to date Optional Fan (for Water-Cooling or Passive-Cooling only) Maximize performance and minimize noise! The optional fan is specifically designed to provide sufficient airflow over the CPU power modules and chipset area when water-cooling or passive-cooling is utilized, ensuring effective heat dissipation for the entire system.
Key Features
ASUS A8N32-SLI Deluxe AMD Socket939 ATX. Processor manufacturer: AMD, Processor socket: Socket 939. Maximum internal memory: 4 GB. Networking features: Dual Gigabit LAN Marvell 88E8053 PCI-E Gigabit LAN & Wireless 54 Mbps IEEE 802.11g. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC850. BIOS memory size: 64 Mbit
