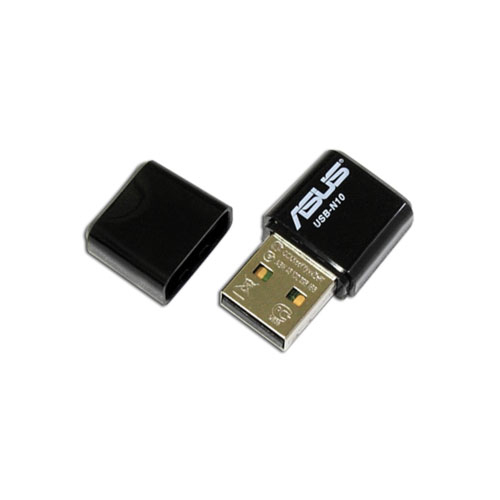

ASUS USB-N10 150 Mbit/s
Brand: ASUS · SKU: 90-IG14002M00-0PA0 · MPN: 90-IG14002M00-0PA0 · Category: Components
ASUS USB-N10, Wireless, USB, 150 Mbit/s. ASUS USB-N10 150 Mbit/s (part number 90-IG14002M00-0PA0) is an enterprise components product available from Server Tech Central. Key specifications include depth 17 mm, wi-fi Yes, width 30 mm, height 8.5 mm, modulation 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, QPSK, wi-fi band Single-band (2.4 GHz), usb powered Yes, antenna type MIFA. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 17 mm |
|---|---|
| Wi-Fi | Yes |
| Width | 30 mm |
| Height | 8.5 mm |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, QPSK |
| Wi-Fi band | Single-band (2.4 GHz) |
| USB powered | Yes |
| Antenna type | MIFA |
| Certification | CE, FCC, IDA, IC, C-Tick, NCC, GOST |
| Host interface | USB |
| Frequency range | 2.4 - 2.5 GHz |
| Channels quantity | 13 channels |
| Security algorithms | TKIP, WPA-PSK, WPA2-PSK |
| Wireless connection | Yes |
| Receiver sensitivity | -84 dBm @11 Mbps; -70 dBm @54 Mbps; -67 dBm @64-QAM, 20MHz; -64 dBm @64-QAM, 40MHz |
| Connectivity technology | Wireless |
| Output power description | 11b: 17+/-1 dBm, 11g: 15+/-1 dBm@54Mbps, 11n: 13+/-1 dBm (14.5dBm) |
| Storage temperature (T-T) | -10 - 70 °C |
| Maximum data transfer rate | 150 Mbit/s |
| Maximum operating distance | 150 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Compatible operating systems | - Windows 2000/ XP(x86/x64)/ Vista(x86/x64)/ 7(x86/x64); - Mac 10.4/10.5/10.6; - Linux 2.4/ 2.6 |
| Compliance industry standards | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Supported data transfer rates | 54/48/36/24/18/12/9/6/11/5.5/2/1 Mbps |
| Warranty | 3-Year Warranty |
| Dimensions | 30 mm x 17 mm x 8.5 mm |
Product Description
EZ N First-class Performance The ASUS USB-N10 provides superior wireless performance for your PC compared to legacy wireless 802.11g technology. It uses a best-in-class MIFA antenna to deliver consistent HD quality data streaming and a much wider wireless operating range. In addition to providing better bandwidth and coverage, the 802.11n standard it’ also backward compatible with 11g and 11b networks, ensuring existing networking hardware can be fully utilized. Breakthrough Antenna Design The wireless USB adapter incorporates an impressive MIFA antenna which is better than PCB and Chip antennas widely used in generic adapters. This integrated antenna and connector design provides a compact form factor that is much smaller than conventional adapters and greatly expands the transmission range. Extremely Compact and Powerful USB-N10 is the smallest wireless USB adapter in the world. Boasting a 3 cm body length, it is easy to carry and takes up little space when attached to a notebook. Compared to most USB Wi-Fi adapters, it is extremely compact and sturdy with its pocket-sized format and strong plug-in design. This small size and strengthened one-piece shape allows a host notebook to be connected to the USB-N10 even when it is placed in a slim carrying case or bag. Thus you can enjoy constant connectivity with the ASUS USB-N10! PSP Xlink Kai Support Similar to the USB-N13, the USB-N10 delivers PSP Xlink connection support. You can play system-link games over the Internet rather than just over your LAN while on-the-move. Multiple OS Support - Windows, Mac and Linux USB-N10 allows you to easily enjoy wireless networking over various platforms. It is compatible with common operating systems such as Windows, Linux, Mac, and even the newest Windows 7 OS.
Key Features
ASUS USB-N10. Connectivity technology: Wireless, Host interface: USB. Maximum data transfer rate: 150 Mbit/s, Wi-Fi band: Single-band (2.4 GHz). Antenna type: MIFA. USB powered
