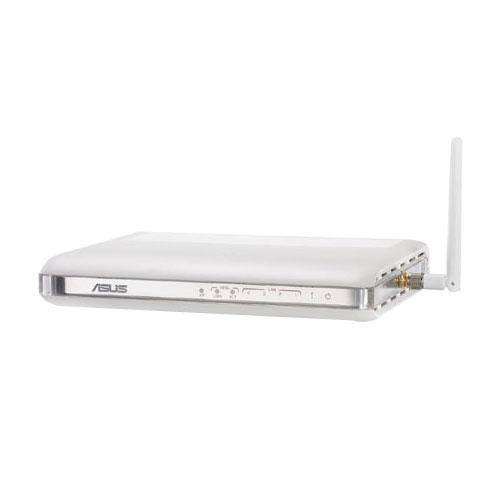

ASUS WL-AM604g gateway/controller
Brand: ASUS · SKU: 90-IEE000D00-3EA · MPN: 90-IEE000D00-3EA · Category: Components
ASUS WL-AM604g, ANSI T1.413 2, ITU-T G.992.1, G992.2, G994.1, RFC 1483/2684, ITU-T 1.610 F4-F5 OAM,..., IEEE 802.11, IEEE 802.11b, IEEE 802.11g, 2+, DBPSK, QPSK, 0 - 50 °C, -40 - 70 °C
Specifications
| I/O ports | 4 x RJ-45 1 x RJ-11 |
|---|---|
| Modulation | DBPSK, QPSK |
| Certification | FCC Part 15, Part 68, CE Mark |
| Plug and Play | Yes |
| DSL specification | 2+ |
| Firewall security | Yes |
| Supported protocols | ANSI T1.413 2, ITU-T G.992.1, G992.2, G994.1, RFC 1483/2684, ITU-T 1.610 F4-F5 OAM, PAP/CHAP/MS-CHAP, DHCP, DNS, DMZ, PPP |
| Networking standards | IEEE 802.11, IEEE 802.11b, IEEE 802.11g |
| Manageability features | GUI CLI Telnet FTP/TFTP Syslog |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
Product Description
Wireless router + ADSL modem in ONE device Support both ADSL 2 and ADSL 2+, which is capable of delivering up to 24Mbps of downstream data rate, depending on the service providers and actual distance. 802.11g wireless LAN standard provides 54Mbps data rate in the LAN. "Quick Setup" – auto-detection of local ADSL settings - Powered by a well-defined ADSL connection database. - Auto-detection of local ISP settings (VPI/VCI/connection type) in almost every open channel ADSL-implemented territory. - No more complicated ADSL configuration! Modem & router in one box working in just a few clicks away. EZQoS(Asus Bandwidth on Demand) Intelligently optimizes network resources and automatically prioritizes network traffic to guarantee latency-free gaming experience.
Key Features
ASUS WL-AM604g. Supported protocols: ANSI T1.413 2, ITU-T G.992.1, G992.2, G994.1, RFC 1483/2684, ITU-T 1.610 F4-F5 OAM,.... Networking standards: IEEE 802.11, IEEE 802.11b, IEEE 802.11g, DSL specification: 2+, Modulation: DBPSK, QPSK. Certification: FCC Part 15, Part 68, CE Mark. I/O ports: 4 x RJ-45 1 x RJ-11
