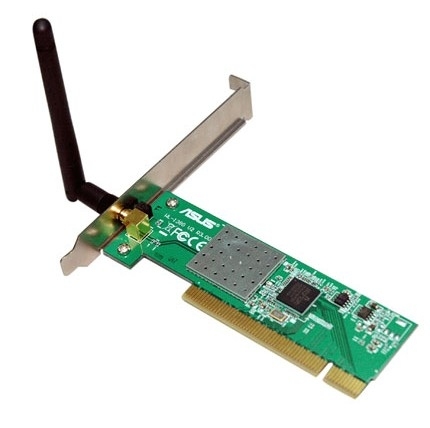

ASUS WL-138g V2 PCI Adapter Internal 54 Mbit/s
Brand: ASUS · SKU: 90-I9B3A0-0UAZ · MPN: 90-I9B3A0-0UAZ · Category: Components
ASUS WL-138g V2 PCI Adapter, Internal, Wireless, PCI, 54 Mbit/s
Specifications
| Depth | 122 mm |
|---|---|
| Width | 40 mm |
| Height | 4.6 mm |
| Internal | Yes |
| Slot type | 32-bit PCI |
| Modulation | CCK, DBPSK, DQPSK, OFDM |
| Wi-Fi band | Single-band (2.4 GHz) |
| Form factor | Plug-in |
| Antenna type | Detachable |
| Indoor range | 802.11b - 40m 802.11g - 30m |
| Certification | ETS 300 328 & ETS 300 826; CE Mark; FCC Part 15C, Section 15.247 |
| Outdoor range | 802.11b - 310m 802.11g - 60m |
| Host interface | PCI |
| LED indicators | Link |
| Frequency range | 2.412 - 2.472 GHz |
| Bundled software | Mobile control center Wireless setting Mobile manager Site survey One Touch Setup Wizard |
| Channels quantity | 13 channels |
| Security algorithms | WPA |
| TX power consumption | 350 mA |
| Antenna connector type | RP-SMA |
| Spread spectrum method | DSSS |
| Connectivity technology | Wireless |
| Output power description | 18dBm |
| Maximum data transfer rate | 54 Mbit/s |
| Warranty | 3-Year Warranty |
| Dimensions | 40 mm x 122 mm x 4.6 mm |
Product Description
Asus WL-138g V2 Wireless PCI Adapter provides an option for desktop PC users to optimize wireless LAN connectivity. The Asus wireless IEEE802.11g PCI Adapter is ready to run in any PCI-equipped desktop PC. With WL-138g V2 Wireless PCI Adapter, users may easily upgrade their desktop PCs to WLAN client station, which have users on the network without restriction. Fast and easy data transfer Fast data transfer at 54Mbps and 11Mbps through IEEE802.11g and IEEE802.11b, respectively. It also supportt WEP (64/128 bit) and WPA & WPA2 (including 802.1x, TKIP, AES, …) encryption, to prevent unauthorized entries. Auto-environment detection The system will automatically detect WLAN environments to select 802.11g for faster transfer or 802.11b for backward compatible. Features: - PCI bus power management interface specification 1.0 compliant. - ACPI 1.0 compliant. - IEEE 802.11b/g standard for 2.4 GHz Wireless LAN. - PCI local bus specification Revision 2.2 compliant. - Reverse connector with a detachable antenna. - Supports 64/128 bit WEP and WiFi Protected Access (WPA2). - Support Windows XP/2000/ME/98SE. - Support Software AP.
Key Features
ASUS WL-138g V2 PCI Adapter. Internal. Connectivity technology: Wireless, Host interface: PCI. Maximum data transfer rate: 54 Mbit/s, Wi-Fi band: Single-band (2.4 GHz). Antenna type: Detachable
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS WL-138g V2 PCI Adapter Internal 54 Mbit/s (90-I9B3A0-0UAZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS WL-138g V2 PCI Adapter Internal 54 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS WL-138g V2 PCI Adapter Internal 54 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-I9B3A0-0UAZ.
