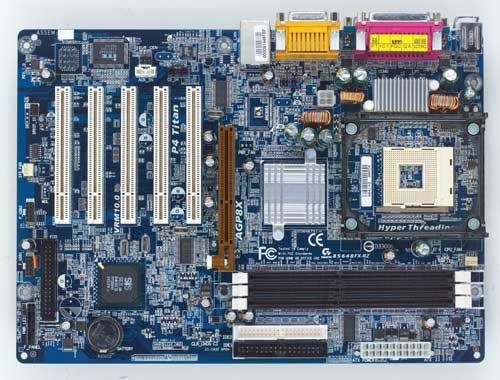

GIGABYTE 8S648FX-RZ motherboard Socket 478 ATX
Brand: GIGABYTE · SKU: 8S648FX-RZ · MPN: 8S648FX-RZ · Category: Components
GIGABYTE 8S648FX-RZ, Intel, Socket 478, Intel® Pentium® 4, 533,800 MHz, DDR-SDRAM, 3 GB. GIGABYTE 8S648FX-RZ motherboard Socket 478 ATX (part number 8S648FX-RZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 209 mm, width 295 mm, pci slots 5, agp x8 slots 1, component for PC, cd/aux audio in Yes, bios memory size 2 Mbit, bundled software Norton Internet Security Adobe Acrobat Reader. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 209 mm |
|---|---|
| Width | 295 mm |
| PCI slots | 5 |
| AGP x8 slots | 1 |
| Component for | PC |
| CD/AUX audio in | Yes |
| BIOS memory size | 2 Mbit |
| Bundled software | Norton Internet Security Adobe Acrobat Reader |
| Drivers included | Yes |
| Processor socket | Socket 478 |
| Headphone outputs | 3 |
| Power source type | ATX |
| COM ports quantity | 2 |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Number of memory slots | 3 |
| On-board graphics card | No |
| Processor manufacturer | Intel |
| Supported memory types | DDR-SDRAM |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 3 GB |
| Motherboard form factor | ATX |
| Ethernet LAN (RJ-45) ports | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 295 mm x 209 mm |
Product Description
8S648FX-RZ is designed for high performance Intel® Pentium® 4 platform, especially for the latest 90nm process (Prescott) Pentium® 4 processor with Hyper-Threading Technology. Empowered by the latest SiS 648FX and 963L chipsets, 8S648FX-RZ delivers a new architecture to uplift the system performance. The brand new 800MHz processor bus and DDR400 memory support are provided to unleash the full power of Intel® Pentium® 4 800MHz FSB processors. The AGP 8X graphics interface is built to derive the maximum performance from the most powerful graphics accelerator. The MuTIOL 1G® Technology with 1GB/s bandwidth is applied to speed up the internal traffic between SiS 648FX and 963L chipsets. 8S648FX-RZ also provides a variety of features such as 6 USB2.0 ports, 6-channel audio, 10/100Mbps network connection, and high speed Ultra ATA133 interface. 8S648FX-RZ is designed to provide the new levels of performance and fulfill the requirement for full range of applications now and future. Integrated SiS HyperStreaming Engine The HyperStreaming Engine, developed for users that have strong needs for bandwidth and speed, optimizes the performance of the entire computer system. It smartly manages the data streaming to flow effortlessly from the peripherals to the core logic chipsets, between the North and South bridge and to the front side bus, memory and graphic interface. This greatly improves the total performance of desktop platform. Supports DDR 400/333/266 up to 3GB Memory Available with 3 DIMM slots supporting up to 3GB of DDR266/DDR333 or 2GB of DDR400 memory, 8S648FX-RZ provides the highest performance platform with the high-bandwidth (3.2GB/s) mainstream DDR memory solution.
Key Features
GIGABYTE 8S648FX-RZ. Processor manufacturer: Intel, Processor socket: Socket 478, Compatible processor series: Intel® Pentium® 4. Supported memory types: DDR-SDRAM, Maximum internal memory: 3 GB, Supported memory clock speeds: 266,333,400 MHz. Component for: PC, Motherboard form factor: ATX, Power source type: ATX. BIOS memory size: 2 Mbit. Width: 295 mm, Depth: 209 mm
