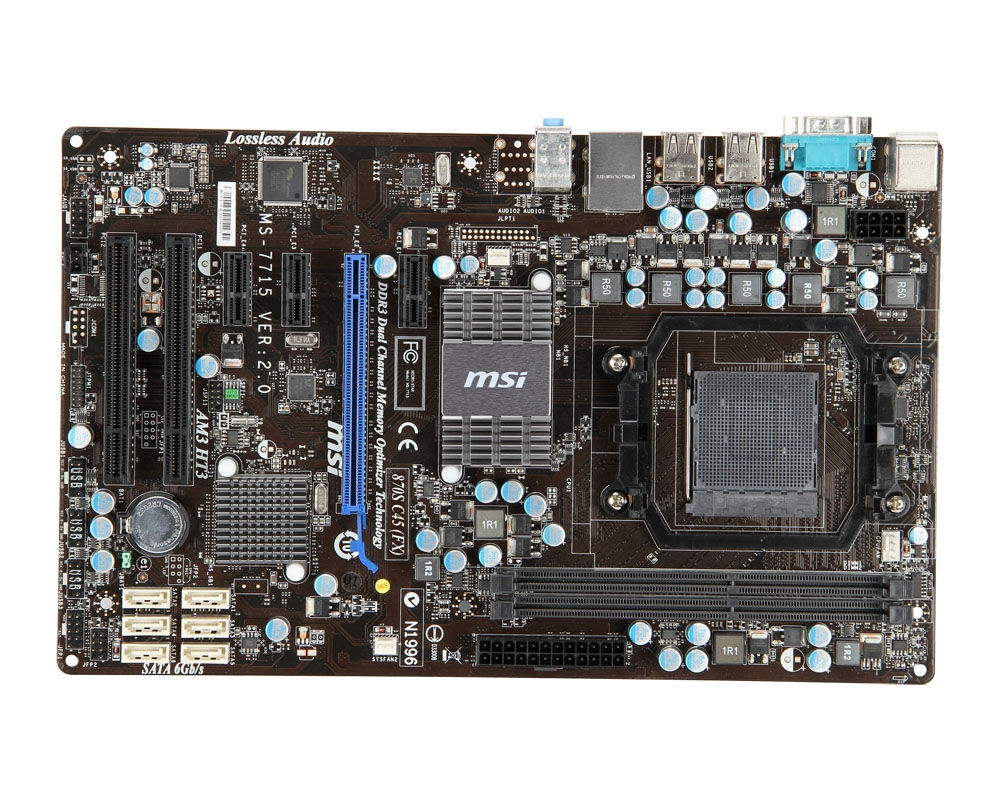

MSI 870S-C45 (FX) motherboard AMD 870 (RX881) Socket AM3+ ATX

Specifications

Product Description

AMD 870 chipset based - Support SATA 6Gb/s; - Lossless 24bit/192kHz HD Audio. SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. Features: - 2X Faster Than SATA 3Gb/s; - Up to 6Gb/s Data Transfer Bandwidth; - Unleash True Performance of New HDDs/SSDs. M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. Features: - Backup/Restore Your BIOS to/from Any USB Flash Disk; - Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process; - Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process. APS (Active Phase Switching) Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage. USB Safeguard USB Safeguard can prevent mainboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the mainboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan. Features: - All MSI mainboards use USB Safeguard’s anti-ESD chip for thorough protection against ESD damage; - USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply. i-Charger Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI i-Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the i-Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. Features: - Automatically Detect & Charge Your Smart Phone or Tablet; - Support Microsoft Windows 98SE/ME/2000/XP/Vista/7 32Bit. Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. Features: - Automatically Detect the BIOS/Driver/VGA/Utility Update; - Support Microsoft Windows XP/Vista/7 32/64bit. Cool'n'Quiet AMD Cool'n'Quiet™ Technology reduces heat and noise so you can experience amazing performance without distraction. Combined with core enhancements, included in the AMD processors, that can improve overall power savings, deliver better multitasking and energy efficiency. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes. Features: - Independent Dynamic Core Technology; - Dual Dynamic Power Management™; - AMD CoolCore™ Technology; - AMD Wideband Frequency Control; - Multi-Point Thermal Control. Solid Capacitors on PWM Capacitors are the most important component for electronic product’s power supply. The quality of the capacitors can impact the stability of the entire system and risk of product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures. More importantly, solid capacitors do not have any liquid materials inside, and thus will not suffer a leak which would infringe upon the product’s stability. With such benefits is it no wonder that solid capacitors are very important for product quality’s improvement.

Key Features

MSI 870S-C45 (FX). Processor manufacturer: AMD, Processor socket: Socket AM3+, Compatible processor series: AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 10, JBOD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
