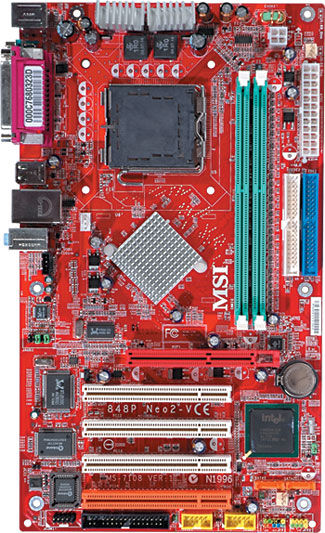

MSI 848P NEO2-V motherboard LGA 775 (Socket T) ATX
Brand: MSI · SKU: 848P NEO2-V · MPN: 848P NEO2-V · Category: Components
MSI 848P NEO2-V, Intel, LGA 775 (Socket T), 800 MHz, 2 GB, Fast Ethernet 10/100 Mb/s, ATX. MSI 848P NEO2-V motherboard LGA 775 (Socket T) ATX (part number 848P NEO2-V) is an enterprise components product available from Server Tech Central. Key specifications include i/o ports 4 x USB 2.0 1 x RJ45, audio output 6 channels ALC655, expansion slots 1x AGP slot 8x/4x 4x 32-bit v2.3 Master PCI, processor socket LGA 775 (Socket T), power source type ATX, networking features Fast Ethernet 10/100 Mb/s, processor manufacturer Intel, maximum internal memory 2 GB. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| I/O ports | 4 x USB 2.0 1 x RJ45 |
|---|---|
| Audio output | 6 channels ALC655 |
| Expansion slots | 1x AGP slot 8x/4x 4x 32-bit v2.3 Master PCI |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| Networking features | Fast Ethernet 10/100 Mb/s |
| Processor manufacturer | Intel |
| Maximum internal memory | 2 GB |
| Motherboard form factor | ATX |
| Processor system buses supported | 800 MHz |
| Warranty | 3-Year Warranty |
Product Description
CPU Supports Intel® Pentium 4 / Celeron D processors in LGA775 package. Supports up to Pentium 4 5xx, 6xx(EM64T) and Celeron D 3xx sequence processor. Supports Intel Hyper-Threading Technology. Supports FSB 533/800MHz Chipset Intel® 848P Chipset Supports 400/533/800MHz Intel NetBurst micro-architecture bus. Supports AGP 8X/4X at 0.8V (AGP 3.0) or 4X at 1.5V (not support 3.3V) interface. Supports DDR266/333/400 memory. Intel® ICH5 Chipset 8 Hi-Speed USB ports (USB2.0/1.1) controller, 480Mb/sec. 2 Serial ATA/150 ports. 2 channel Ultra ATA 100 bus Master IDE controller. PCI Master v2.3. Supports both ACPI and legacy APM power management. Main Memory Supports two unbuffered DIMM of 2.5 Volt DDR SDRAM. Supports up to 2GB memory size without ECC. Supports Single channel DDR266/333/400 MHz. Slots One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V not supported). Four 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface). On-Board IDE/SATA Dual Ultra DMA 66/100 IDE controllers integrated in ICH5. Supports PIO, Bus Master operation modes. Can connect up to four Ultra ATA drives. Serial ATA/150 controller integrated in ICH5. Up to 150MB/sec transfer rate. Can connect up to 2 Serial ATA drives. Audio AC'97 link controller integrated in ICH5. 6 channels software audio codec ALC655. Compliance with AC97 v2.3 Spec. Meet PC2001 audio performance requirement. Network Realtek 8100C Integrated Fast Ethernet MAC and PHY in one chip. Supports 10Mb/s, 100Mb/s auto-negotiation operation. Compliant with PCI v2.2. Supports ACPI Power Management. Internal I/O Connectors ATX 24-Pin power connector 4-pin ATX 12V power connector CPU / System / Power fan connectors CD-in connector Chassis intrusion switch connector 1 x floppy disk drive connector 2 x serial ATA connectors 2 x ATA100 IDE drive connectors Clear CMOS jumper Serial port connector (COM2) Front panel connector Front panel audio connector 2 x USB 2.0 connector support additional 4 ports Back Panel I/O Ports 1 x Parallel 1 x Serial port (COM 1) 1 x PS/2 keyboard 1 x PS/2 mouse 1 x Audio I/O (Line-in/Line-out/MIC) 4 x USB 2.0 1 x RJ45 LAN jack
Key Features
MSI 848P NEO2-V. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor system buses supported: 800 MHz. Maximum internal memory: 2 GB. Networking features: Fast Ethernet 10/100 Mb/s. Motherboard form factor: ATX, Power source type: ATX. Audio output: 6 channels ALC655
