Brand: Keysight (formerly Agilent/HP) · SKU: 82350B · MPN: 82350B · Category: Components

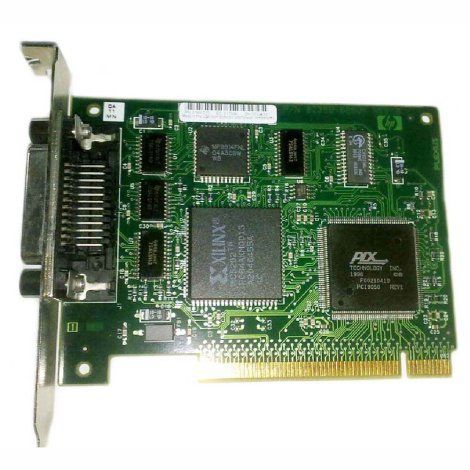

The Keysight 82350B is a high-performance IEEE-488 interface and software for 5V PCI-based PCs. It is a high-speed PCI card with built-in buffering, which de-couples GPIB transfers from PCI bus transfers, providing I/O and system performance superior to direct memory access (DMA), up to 900 KB/s. It features a standard IEEE-488 interface, allowing connections to a maximum of 14 GPIB instruments via daisy chain. The card is configured as a plug-and-play device and is compatible with IEEE versions 488.1 and 488.2, using a 32-bit PCI bus slot (5V PCI only). It comes with SICL and VISA software for various Windows operating systems. The product status is marked as 'Obsolete' by Keysight. The physical card dimensions are approximately 122 mm (L) x 122 mm (W) x 22 mm (H) and it weighs about 0.091 kg (or 1.1 lbs according to another source). It complies with EMC and safety measurements for IEC 61326-1 (Group 1, Class A) and IEC 61010-1. It can be used with Keysight I/O Libraries Suite-15.0 or
| Bus Type | PCI (5V, 32-bit, PCI rev 2.1/2.2) |
|---|---|
| Buffering | Built-in |
| Connectors | Standard 24-pin GPIB |
| Max Data Rate | Up to 900 KB/s |
| Interface Type | GPIB (IEEE-488) |
| Max Instruments | 14 |
| Software Support | SICL and VISA (Compatible with Keysight I/O Libraries Suite 14.2+) |
| Safety/EMC Compliance | IEC 61326-1 (Group 1, Class A), IEC 61010-1 |
| Compatibility Standard | IEEE 488.1 and IEEE 488.2 |
| Supported OS (Latest Mentioned) | Windows XP/Vista/7/8/2000/98/Me/NT4 |
| Warranty | 1 year (Original warranty, product is now Obsolete) |
| Weight | 0.091 kg |
| Dimensions | 122 mm (L) x 122 mm (W) x 22 mm (H) or 9 × 6 × 1 in |
The 82350B is a discontinued, high-performance GPIB interface card for PCI-based computers, known for its fast data transfer rates (up to 900 KB/s) due to built-in buffering that separates GPIB and PCI bus transactions. It supports plug-and-play installation and is compatible with industry-standard programming environments via SICL and VISA software.
Yes, this Keysight 82350B PCI High-Performance GPIB Interface Card (82350B) is 100% genuine Keysight (formerly Agilent/HP) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Keysight 82350B PCI High-Performance GPIB Interface Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 82350B.
