Brand: Lenovo/IBM · SKU: 81Y4481 · MPN: 81Y4481 · Category: Components

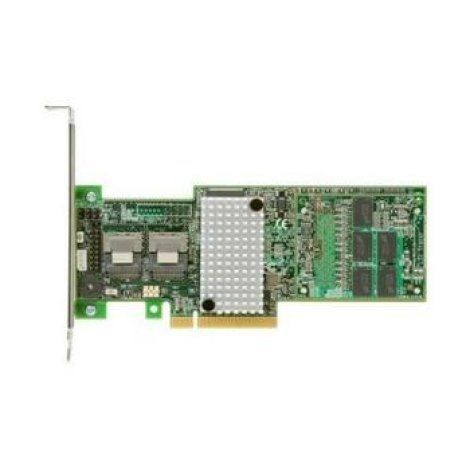

The Lenovo/IBM ServeRAID M5110 is a 6 Gb SAS/SATA internal RAID controller designed for IBM System x servers. It features an 800 MHz dual-core IBM PowerPC processor with an LSI SAS2208 6 Gbps RAID on Chip (ROC). It utilizes a PCI Express 3.0 x8 host interface and offers eight internal 6 Gbps SAS/SATA ports via two internal Mini-SAS connectors (SFF-8087). The controller supports RAID levels 0, 1, and 10 standard, with support for RAID 5, 50, 6, and 60 available with optional upgrades (Features on Demand software licenses). It supports connections to up to 32 internal drives, depending on the server model, and supports both SAS and SATA HDDs and SSDs. Optional features include MegaRAID SafeStore for self-encrypting drives (SEDs), MegaRAID FastPath for SSD acceleration, and MegaRAID CacheCade for SSD caching. The base controller is a Low-profile, Half-length (MD2 form factor) PCIe adapter. It supports up to 64 virtual drives and LUN sizes up to 64 TB. In iMR mode (no cache installed), it
| Processor | 800 MHz dual-core IBM PowerPC with LSI SAS2208 ROC |
|---|---|
| Form Factor | Plug-in Card, Low-profile, Half-length (MD2) |
| Manufacturer | Lenovo Group Limited / IBM |
| Product Line | ServeRAID |
| Product Model | M5110 |
| Host Interface | PCI Express 3.0 x8 |
| RAID Supported | Yes |
| SAS/SATA Ports | Eight internal 6 Gbps ports |
| Controller Type | 6Gb/s SAS / Serial ATA/600 |
| Internal SAS Ports | 2 (via 2 x SFF-8087 connectors) |
| Standard RAID Levels | 0, 1, 10 |
| Max Internal Drives Supported | Up to 32 |
| Optional RAID Levels (w/ Upgrade) | 5, 50, 6, 60 |
| Warranty | 1 Year Limited Warranty (Varies by seller/condition) |
| Weight | 0.50 kg (Approximate) |
| Dimensions | 2.7" Height x 0.6" Width x 6.6" Depth (Card Dimensions) |
The ServeRAID M5110 is a high-performance, internal RAID adapter that integrates a dual-core PowerPC processor and PCIe 3.0 interface for demanding enterprise storage needs. It provides robust RAID capabilities and supports SAS/SATA drives, with options for advanced features like caching, SSD acceleration, and self-encryption.
Yes, this Lenovo/IBM ServeRAID M5110 SAS/SATA Controller (81Y4481) is 100% genuine Lenovo/IBM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Lenovo/IBM ServeRAID M5110 SAS/SATA Controller includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 81Y4481.
