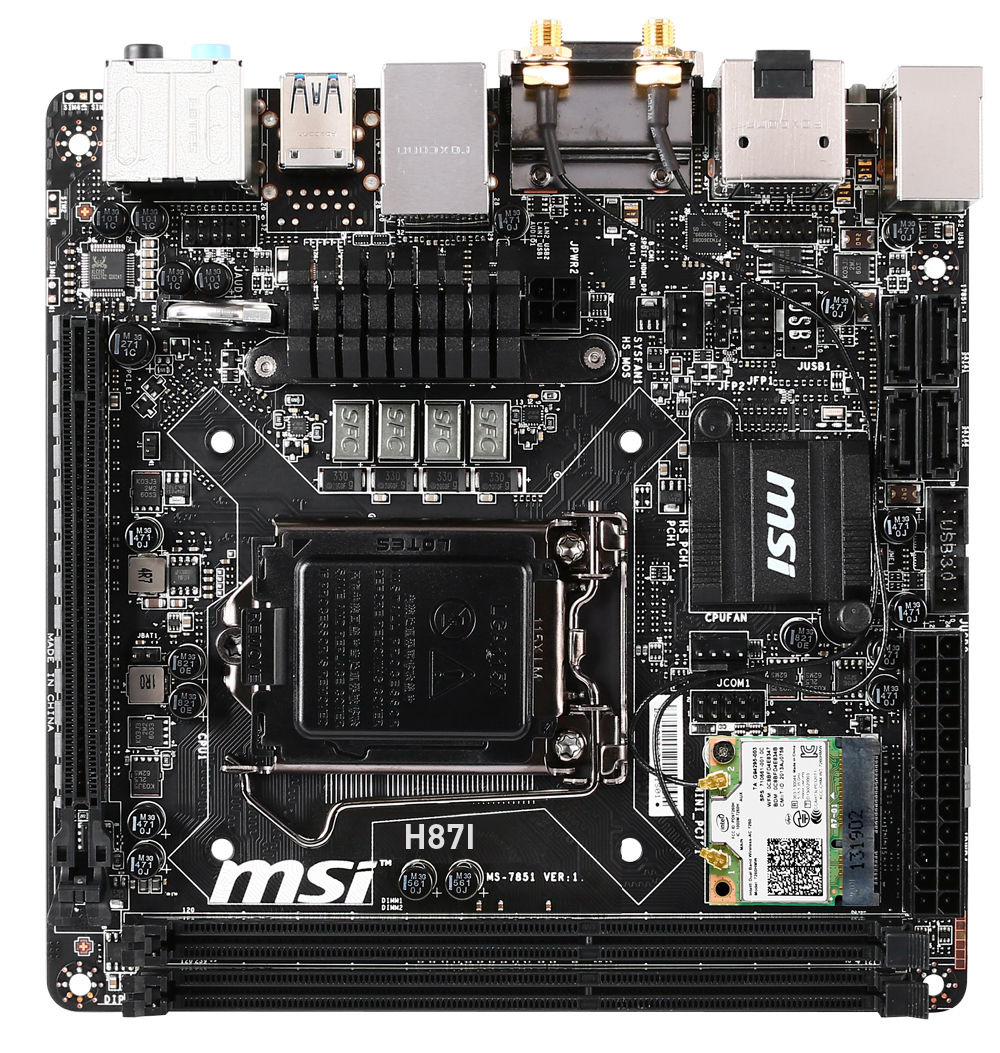

MSI H87I AC Intel® H87 LGA 1150 (Socket H3) mini ITX

Brand: MSI · SKU: 7851-039R · MPN: 7851-039R · Category: Components

MSI H87I AC Intel® H87 LGA 1150 (Socket H3) mini ITX
Request for Quote
Backorder

MSI H87I AC, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 16 GB

View Components Products

Specifications

Depth170 mm
Wi-FiYes
Width170 mm
BIOS typeUEFI
BluetoothYes
Audio chipRealtek ALC892
RAID levels0, 1, 5, 10
Cooling typePassive
Ethernet LANYes
Component forPC
Dual Link DVIYes
Microphone inYes
LAN controllerRealtek RTL8111G
DirectX version11
Memory channelsDual-channel
S/PDIF out portYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Processor socketLGA 1150 (Socket H3)
Bluetooth version4.0
CPU fan connectorYes
Clear CMOS jumperYes
Headphone outputs1
Memory slots typeDIMM
Power source typeATX
Warranty3-Year Warranty
Dimensions170 mm x 170 mm

Product Description

- Supoorts 4th Gen Intel® Core™/Pentium®/Celeron® processors for LGA 1150 socket - Supports DDR3-1600 Memory - USB 3.0 + SATA 6Gb/s - Military Class 4: Top Quality & Stability - Military Class Essentials: Total Protection for Military Class Motherboards - OC Genie 4: Overclock in 1 Second - Click BIOS 4: Easily Fine-tune Your System - 4K UHD Support: Ultra-high Definition Visual Experience - 3 Digital Display Outputs: DisplayPort/HDMI/DVI Support - PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand - USB Audio Power: A Breakthrough in USB Audio Quality - Command Center: Control & Customize Your PC Settings - Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds - Wi-Fi 802.11ac, Bluetooth 4.0, Intel® Wireless Display - Intel® Small Business Advantage: Streamiline PC Maintenance & Security Fast Boot No more waiting for entering O/S! MSI Fast Boot helps to make motherboards boot lightning fast. MSI also add the GO2BIOS button with-in. Simply click it to reset your PC and then go straight to the system BIOS. Click bios 4 The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it is also reacts faster, runs smoother and has better mouse support. This is all comes with many cool features. Military Class Essentials The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit. OC Genie 4 OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate. 4K UHD Support Enjoy the awesome 4K UHD video playback now! MSI’s 8 series motherboard that equips with HDMI port(s) supports the latest and innovative 4K UHD (2160p ultra-high definition) signal output to provide a unprecedented visual experience. Super RAID MSI's exclusive Super RAID application helps to easily setup and configure to boost your system performance and stay current with automatic, no-wait updates to your e-mail, social networks, news, and more via the 3 Intel® key technologies: - Intel® Rapid Start - Intel® Smart Response - Intel® Smart Connect Intel® Wireless Display MSI motherboards come with an Intel® Wi-Fi / Bluetooth module which also supports Intel® WiDi. This way you can easy connect to other wireless devices in your home. The support of Wi-Fi 802.11a/b/g/n/ac (2.4/5GHz Dual-Band) and Bluetooth 4.0, 3.0+HS, 2.1+EDR ensures that you have the fastest available transfer speed. With Intel® WiDi (stands for Wireless Display) and a WiDi receiver (not included) you can watch movies on your TV without the need for any cables.

Key Features

MSI H87I AC. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 1760 MB, Graphics card family: Intel, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111G, Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Frequently Asked Questions

Is this product genuine OEM?

Yes, this MSI H87I AC Intel® H87 LGA 1150 (Socket H3) mini ITX (7851-039R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This MSI H87I AC Intel® H87 LGA 1150 (Socket H3) mini ITX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the MSI H87I AC Intel® H87 LGA 1150 (Socket H3) mini ITX compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7851-039R.
