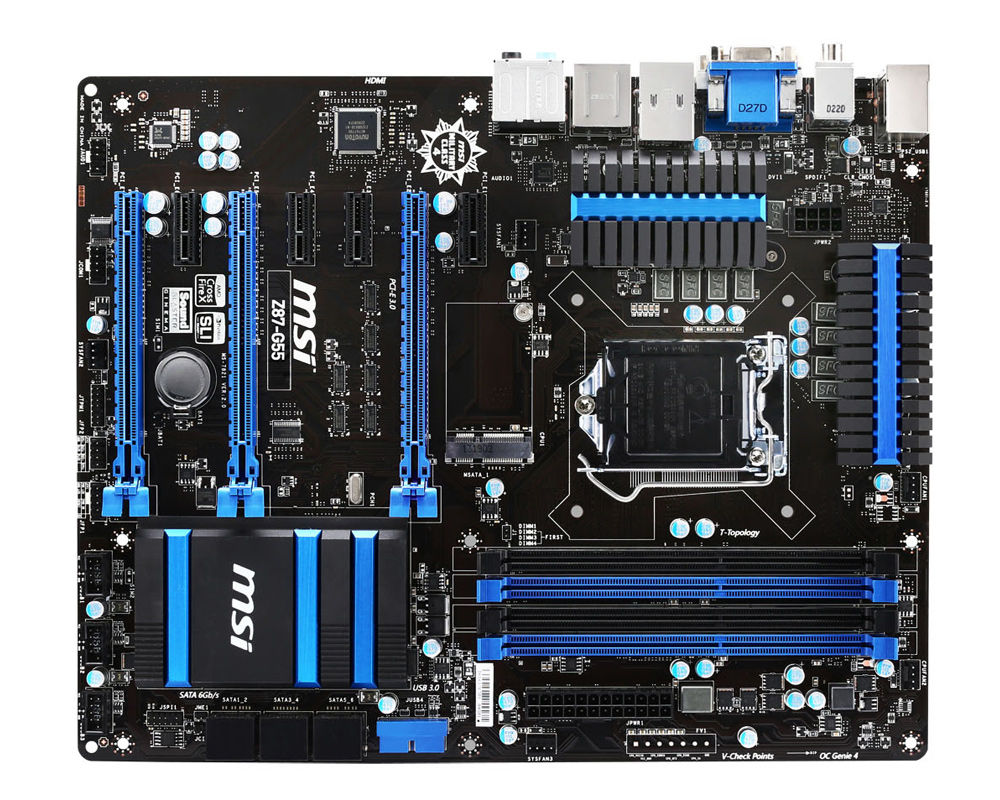

MSI Z87-G55 Intel® Z87 LGA 1150 (Socket H3) ATX
Brand: MSI · SKU: 7821-010R · MPN: 7821-010R · Category: Components
MSI Z87-G55, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 32 GB. MSI Z87-G55 Intel® Z87 LGA 1150 (Socket H3) ATX (part number 7821-010R) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type UEFI, audio chip Realtek ALC892, raid levels 0, 1, 5, 10, cooling type Passive, ethernet lan Yes, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | UEFI |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Dual Link DVI | Yes |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111G |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 4096 x 2160 pixels |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Military Class 4 MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components. Military Class Essentials The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit. OC Genie 4 OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate. Click BIOS 4 The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only reacting faster and running smoother, it also has better mouse support. This is all comes with many cool features, such as Hardware Monitor, Board Explorer, and OC Profile Preview. NVIDIA SLI SLI technology allows using multiple Nvidia graphics cards in a single computer system with a motherboard equipped with an nForce SLI MCP. Users need an a motherboard with two PCI-Express 16x graphics slots and two matching GeForce graphics cards which are "SLI Ready". Most NVIDIA's PCI-Express graphics cards starting from the 6600 GPU can enjoy the benefits of SLI. AMD CrossFire AMD CrossFire is the ultimate multi-GPU performance gaming platform. Enabling game-dominatig power, AMD CrossFire technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFire technology allows you to expand your system's graphics capabilities. It allows you the ability to scale your system's graphics horsepower as you need it, supporting up to four AMD Radeon™ HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFire gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience. Sound Blaster Cinema Hear your enemies perfectly, even on an ear-drum shattering battlefield. Thanks to Sound Blaster Cinema, you're getting amazing surround sound with just stereo headphones. Your most important gaming sound effects are reproduced crystal clear allowing you to focus on your game even during extremely long gaming sessions. Powered by the SBX Pro Studio technologies, Sound Blaster Cinema enables you to clearly hear specific sounds in gaming environments, making your ears a decisive tool on the battlefield.
Key Features
MSI Z87-G55. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, Maximum graphics card memory: 1760 MB, Graphics card family: Intel. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111G
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI Z87-G55 Intel® Z87 LGA 1150 (Socket H3) ATX (7821-010R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI Z87-G55 Intel® Z87 LGA 1150 (Socket H3) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI Z87-G55 Intel® Z87 LGA 1150 (Socket H3) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7821-010R.
