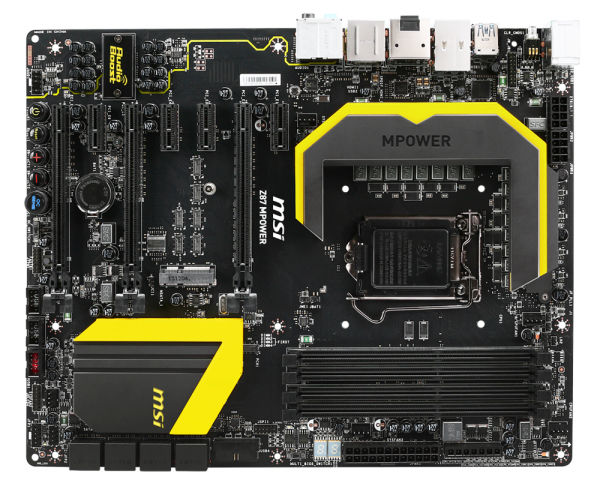

MSI Z87 MPOWER SP Intel® Z87 LGA 1150 (Socket H3) ATX
Brand: MSI · SKU: 7818-009R · MPN: 7818-009R · Category: Components
MSI Z87 MPOWER SP, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 32 GB. MSI Z87 MPOWER SP Intel® Z87 LGA 1150 (Socket H3) ATX (part number 7818-009R) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 244 mm, audio chip Realtek ALC1150, raid levels 0, 1, 5, 10, cooling type Passive, ethernet lan Yes, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC1150 |
| RAID levels | 0, 1, 5, 10 |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Bigfoot Killer E2205 |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| BIOS switch button | Yes |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 4096 x 2160 pixels |
| USB 2.0 connectors | 3 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 305 mm |
Product Description
- Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket - Supports DDR3-3000(OC) Memory - Supports USB 3.0 + SATA 6Gb/s - 16 Phase DigitALL Power Design - Multi-GPU: NVIDIA SLI & AMD CrossFire Support - OC Certified: Military Class Burn-in Test Passed - Military Class 4: Top Quality & Stability - OC Genie 4: Overclock in 1 Second - Click BIOS 4: Easily Fine-tune Your System - PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand - Audio Boost: Reward Your Ears with True Quality - Killer Ethernet: Kill Your Lag - Sound Blaster Cinema: Realistic Surround Sound Experience OC PCB The OC PCB used for the MSI OVERCLOCKING motherboards is a completely new design where 50% more layers are used. This allows us to optimize all traces for overclocking. Power and signal traces are isolated, resulting in higher efficiency and performance and more features can be installed relatively close to each other without causing interference. Every MSI OVERCLOCKING motherboard is tuned for better stability under extreme circumstances: - Increased number of PCB layers - Increased humidity resistance - Tight weave fiberglass PCB - Increased ESD protection DigitALL Power PWM DigitALL Power digitally steers and receives feedback through a DigitALL PWM controller. This allows for pinpoint voltage delivery and lower power consumption. With the switch from analog feedback to digital feedback, you also have the opportunity to implement Load Line Calibration. Thermal design Besides inspiring visual awe the MPOWER Thermal Design was developed to deliver the highest cooling potential in the worst situation. Because it is optimized to work in low-airflow situations, it is the ideal cooling to use with your liquid cooling setup. - MPOWER thermal design - SuperPipe - Low airflow - Optimized design - Clear CPU space - Metal screws Extreme OC socket design What is more frustrating than not being able to properly fit your cooling solution on your motherboard? Through the use of Military Class 4 components we can ensure that normal coolers can easily be installed and the motherboard can easily be insulated for extreme cooling solutions.
Key Features
MSI Z87 MPOWER SP. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, LucidLogix Virtu, Maximum graphics card memory: 1760 MB, Graphics card family: Intel. Ethernet interface type: Gigabit Ethernet, LAN controller: Bigfoot Killer E2205
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI Z87 MPOWER SP Intel® Z87 LGA 1150 (Socket H3) ATX (7818-009R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI Z87 MPOWER SP Intel® Z87 LGA 1150 (Socket H3) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI Z87 MPOWER SP Intel® Z87 LGA 1150 (Socket H3) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7818-009R.
