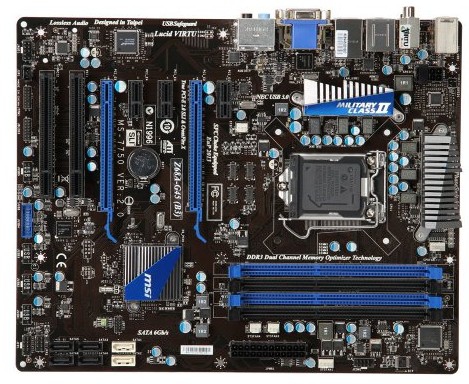

MSI Z68A-G45 Intel Z68 LGA 1155 (Socket H2) ATX
Brand: MSI · SKU: 7750-020R · MPN: 7750-020R · Category: Components
MSI Z68A-G45, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, DDR3-SDRAM, 32 GB, Dual-channel. MSI Z68A-G45 Intel Z68 LGA 1155 (Socket H2) ATX (part number 7750-020R) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 244 mm, pci slots 2, audio chip Realtek ALC892, raid levels 0, 1, 5, 10, audio output S/PDIF, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| Audio output | S/PDIF |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| S/PDIF in port | Yes |
| Memory channels | Dual-channel |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel Z68 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 305 mm |
Product Description
Virtu Switchable Graphics Based on LucidLogix Virtu technology, MSI Z68 mainboard series firstly provides the most expectable feature for desktop platform - switchable graphics, which allows users to enjoy both graphics power of integrated GPU and discrete GPU. It will switch to integrated GPU for HD movie playback, video transcoding and general applications to save system energy, or release full power for hardcore 3D gaming by switching to discrete GPU automatically. B3 Stepping Ready To fix Intel’s 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its Z68/P67/H67 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI Z68/P67/H67 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 mainboard. Click BIOS - Universal Extensible Firmware Interface. - User-friendly mouse-controlled BIOS menu. - Pre-OS Applications(HDD Backup, Game, Memory test). - 15 languages support. THX TruStudio PRO THX is a trade mark of a high-end audio/visual reproduction standard for movies, home theaters, computer speakers and other audio devices. THX Certified Audio products are designed to let users experience movies & videos as live show. The true sound effect can make high definition video more powerful. SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
Key Features
MSI Z68A-G45. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI Z68A-G45 Intel Z68 LGA 1155 (Socket H2) ATX (7750-020R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI Z68A-G45 Intel Z68 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI Z68A-G45 Intel Z68 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7750-020R.
