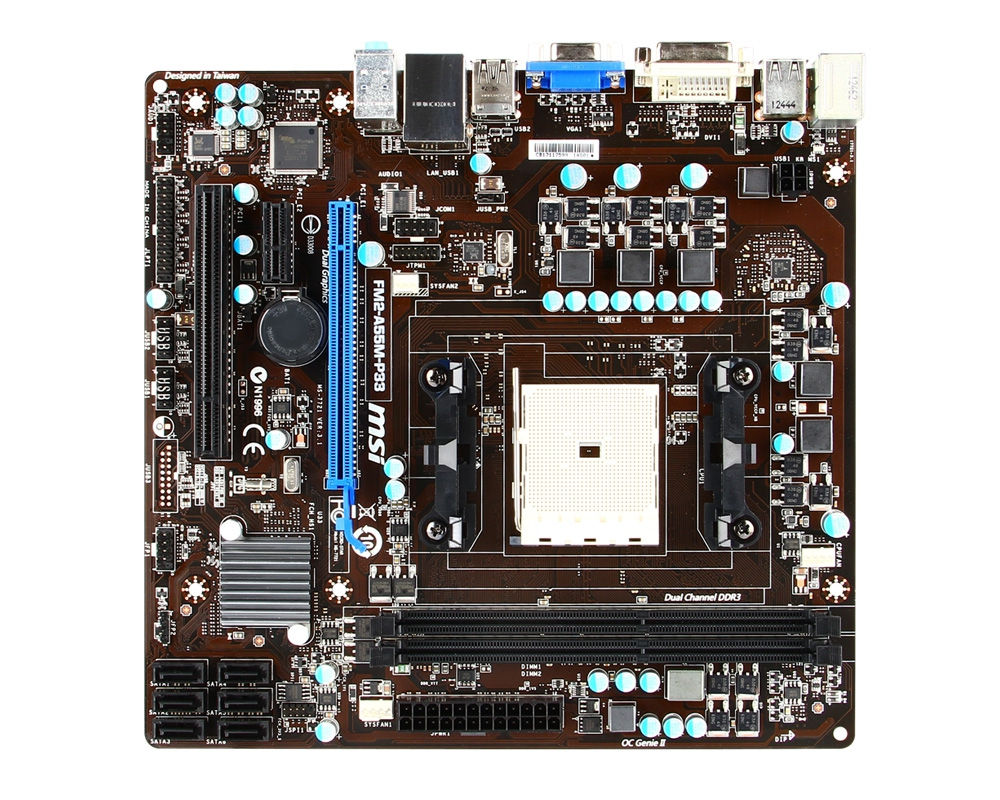

MSI FM2-A55M-P33 AMD A55 Socket FM2 micro ATX
Brand: MSI · SKU: 7721-023R · MPN: 7721-023R · Category: Components
MSI FM2-A55M-P33, AMD, Socket FM2, AMD A, DDR3-SDRAM, 32 GB, DIMM. MSI FM2-A55M-P33 AMD A55 Socket FM2 micro ATX (part number 7721-023R) is an enterprise components product available from Server Tech Central. Key specifications include depth 216 mm, width 226 mm, bios type UEFI, pci slots 1, audio chip Realtek ALC887, raid levels 0, 1, 10, JBOD, cooling type Passive, ethernet lan Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 216 mm |
|---|---|
| Width | 226 mm |
| BIOS type | UEFI |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 10, JBOD |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Dual Link DVI | Yes |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| Processor socket | Socket FM2 |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Parallel connector | Yes |
| USB 2.0 connectors | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 226 mm x 216 mm |
Product Description
AMD A55 chipset - OC Genie II: Auto OC to boost performance in 1 sec - ClickBIOS II: Easy-to-use UEFI BIOS interface - Super Charger: fast charge iPad/iPhone/smartphone OC Genie II OC Genie II provides an instant performance boost, optimizing CPU, memory, integrated graphics, and storage device performance with the function enabled. Benefits - Overclock in one second - At least 15% boost in 3D gaming performance - Simple and easy –No need for complex BIOS setting and extra equipment *Features may vary according to your platform and model. World's 1st UEFI and software graphical user interface MSI Click BIOS II provides a consistent user interface both in the UEFI BIOS and in Windows, it provides the most convenient way for users to control system settings and supports touchscreen control. Benefits - Graphical User Interface, with touchscreen support - Simply click or touch and move to change settings - Full system control, including overclocking, security and information AMD Dual Graphics - The GPU's computing power can be enhanced through the collaborative computing of video cards and APU - Support AMD Radeon HD series graphics card* - MSI completely exerts the AMD Dual Graphics technology to the best Super Charger Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. Note: Only front red USB ports support charger function after system off M-Flash Compared to common motherboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. Features - Backup/Restore Your BIOS to/from Any USB Flash Disk - Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process - Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process
Key Features
MSI FM2-A55M-P33. Processor manufacturer: AMD, Processor socket: Socket FM2, Compatible processor series: AMD A. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 10, JBOD. Maximum graphics card memory: 2048 MB, Graphics card family: AMD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI FM2-A55M-P33 AMD A55 Socket FM2 micro ATX (7721-023R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI FM2-A55M-P33 AMD A55 Socket FM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI FM2-A55M-P33 AMD A55 Socket FM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7721-023R.
