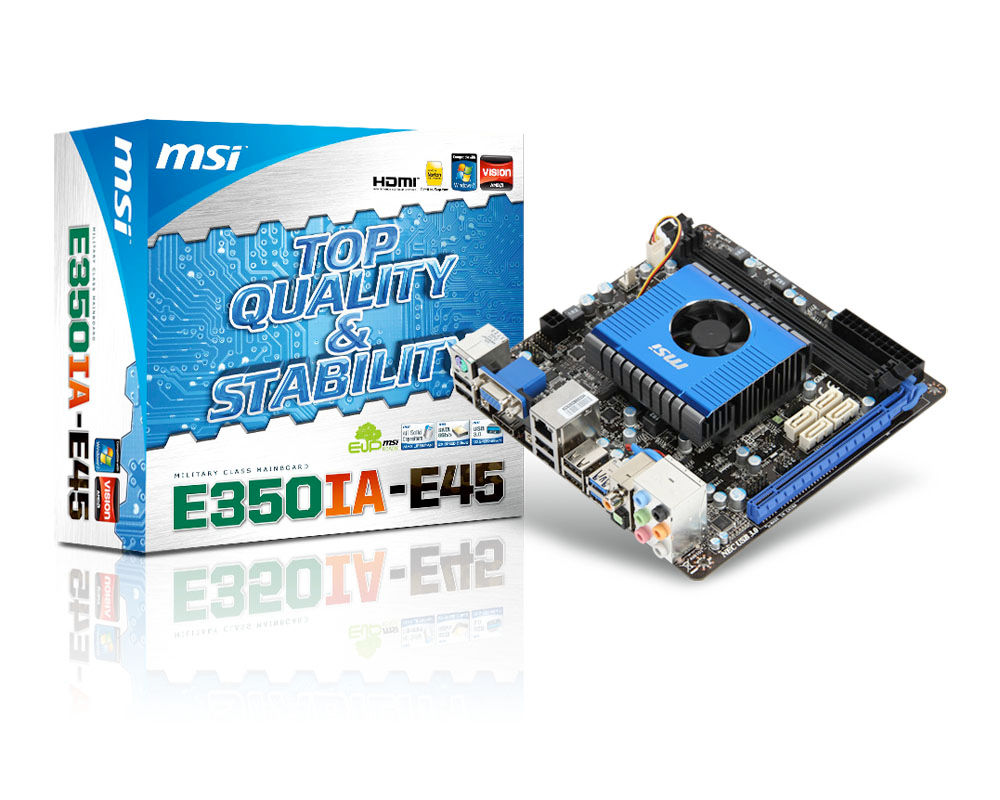

MSI E350IA-E45 AMD A50M BGA 413 (Socket FT1) mini ITX

Specifications

Product Description

All Solid Capacitors Capacitors are the most important component for electronic product's power supply. The quality of the capacitors can impact the stability of the entire system and risk of product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures. More importantly, solid capacitors do not have any liquid materials inside, and thus will not suffer a leak which would infringe upon the product’s stability. With such benefits is it no wonder that solid capacitors are very important for product quality's improvement. USB 3.0 Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient. Features - 10X Faster Than USB 2.0 - Up to 5Gb/s Data Transfer Bandwidth - World’s first to provide Front Panel USB 3.0 Port - Boost Transfer Rate Between Your PC and External Storage Devices SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. Features - 2X Faster Than SATA 3Gb/s - Up to 6Gb/s Data Transfer Bandwidth - Unleash True Performance of New HDDs/SSDs HDMI v1.3 HDMI (High-Definition Multimedia Interface) is new generation fully digital video/audio interface which can transfer 1080p Highi-Definition video and up to 8 channel surround sound such as Dolby Digital or DTS in single compact connector. By passing HDMI 1.3 certification, this product can deliver highest video, audio quality and also support HDCP protection of Blu-ray. Features - Next-Gen Multimedia Interface - Deliver Full HD Video & 8-Channel Surround Sound In Only One Cable Winki 3 Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time. Features - User friendly & totally free applications - Power on to run applications in 25 seconds - Multi-language interface support i-Charger Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI i-Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the i-Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. Features - Automatically Detect & Charge Your Smart Phone or Tablet - Support Microsoft Windows 98SE/ME/2000/XP/Vista/7 32Bit M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. Features - Backup/Restore Your BIOS to/from Any USB Flash Disk - Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process - Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process USB Safeguard USB Safeguard can prevent mainboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the mainboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan. Features - All MSI mainboards use USB Safeguard’s anti-ESD chip for thorough protection against ESD damage - USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. Features - Automatically Detect the BIOS/Driver/VGA/Utility Update - Support Microsoft Windows 98SE/ME/2000/XP/Vista/7 3

Key Features

MSI E350IA-E45. Processor manufacturer: AMD, Processor socket: BGA 413 (Socket FT1), Processor model: E-350. Maximum internal memory: 8 GB, Memory voltage: 1.5 V, Supported memory clock speeds: 800,1066,1333 MHz. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E. Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset: AMD A50M. Width: 170 mm, Depth: 170 mm
