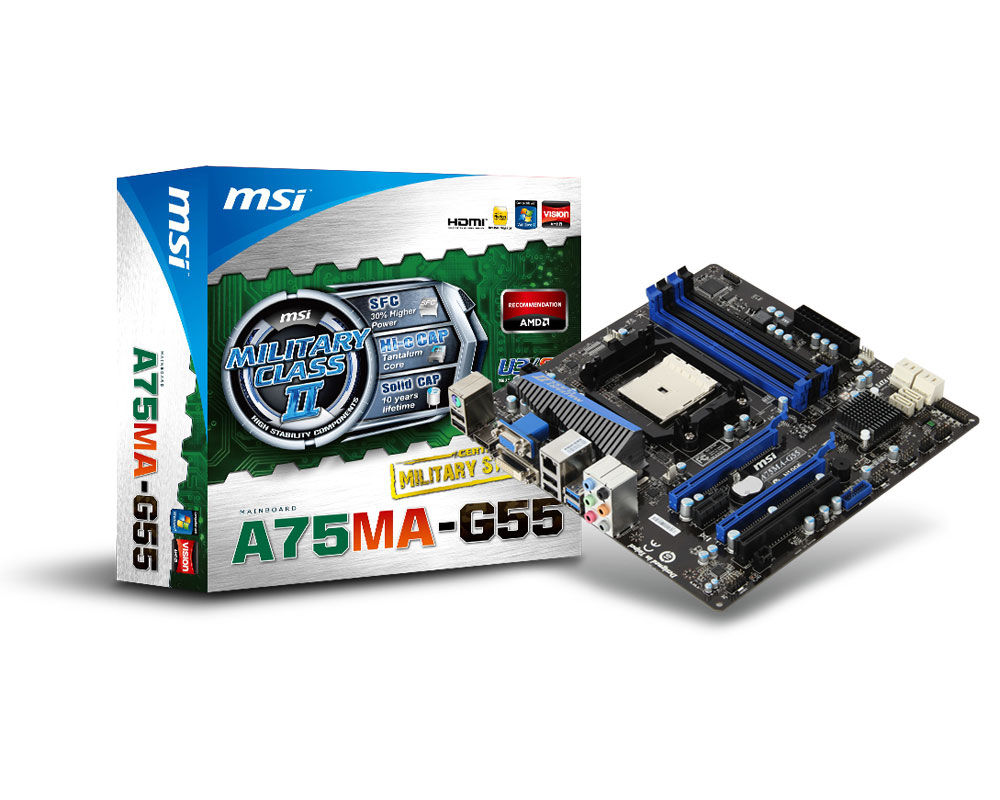

MSI A75MA-G55 AMD A75 Socket FM1 micro ATX
Brand: MSI · SKU: 7696-010R · MPN: 7696-010R · Category: Components
MSI A75MA-G55, AMD, Socket FM1, AMD A, DDR3-SDRAM, 32 GB, DIMM. MSI A75MA-G55 AMD A75 Socket FM1 micro ATX (part number 7696-010R) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, pci slots 1, audio chip Realtek ALC887, ethernet lan Yes, component for PC, microphone in Yes, lan controller Realtek RTL8111E. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| Drivers included | Yes |
| Processor socket | Socket FM1 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Parallel connector | Yes |
| USB 2.0 connectors | 2 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD A75 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
Military Class II (Certificated) The perfect trinity of quality, stability and efficiency all exist at one mainboard to meet end user expectations. The MSI Military Class II series products provide the long lifespan, unparalleled quality, extreme performance and ultimate efficiency. Also, MSI Military Class II components passed 7 tests by 3rd party laboratory and meet the "MIL-STD-810G" Standard, provide the best quality products to our consumers. ClickBIOS Concept Click BIOS Concept is based on the new UEFI technology which supports todays latest hardware. From faster booting to supporting large hard drives with a capacity of over 3TB. MSI's Click BIOS can be controlled with both a keyboard, but it also supports mouse control which simplifies navigating and manipulating system settings. SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. USB 3.0 Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient. HDMI v1.4 (AMD) HDMI (High-Definition Multimedia Interface) is new generation fully digital video/audio interface which can transfer 1080p High-Definition video and Audio output in single compact connector. Supporting HDCP copy protection such as Blu-ray Discs, HDMI provides you with the highest-quality home theater experience. USB Safeguard USB Safeguard can prevent mainboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the mainboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan. AMD CrossFireX AMD CrossFireX™ is the ultimate multi-GPU performance gaming platform. Enabling game-dominatig power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four AMD Radeon™ HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience.
Key Features
MSI A75MA-G55. Processor manufacturer: AMD, Processor socket: Socket FM1, Compatible processor series: AMD A. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Parallel processing technology support: Hybrid CrossFireX, Maximum graphics card memory: 2048 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI A75MA-G55 AMD A75 Socket FM1 micro ATX (7696-010R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI A75MA-G55 AMD A75 Socket FM1 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI A75MA-G55 AMD A75 Socket FM1 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7696-010R.
