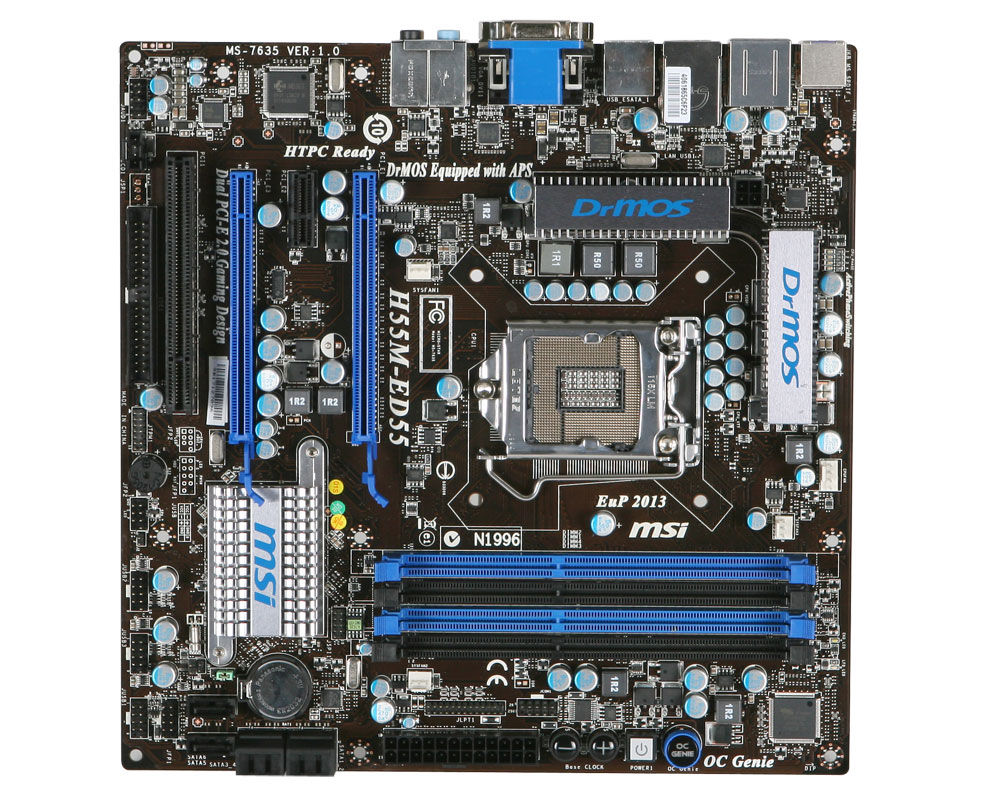

MSI H55M-ED55 LGA 1156 (Socket H) micro ATX
Brand: MSI · SKU: 7635-030R · MPN: 7635-030R · Category: Components
MSI H55M-ED55, Intel, LGA 1156 (Socket H), 16 GB, 1.5 V, Realtek RTL8111DL, Gigabit Ethernet
Specifications
| PCI slots | 1 |
|---|---|
| Audio chip | Realtek ALC889 |
| ACPI version | 2.0 |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111DL |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
Product Description
OC Genie - Overclocking in few seconds - Automatically detect best overclocking configuration - Optimized for best system performance DrMOS - Excellent energy-saving capability and offers high-computing performance. - Provide superior energy-saving function and maintain an ultimate low temperature operation. - Comes with three incredible features. APS (Active Phase Switching) - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. Direct OC - Instant CPU Base Clock adjustment - Hardware low latency control - Attain hardware overclocking performance at all circumstances HTPC+SPDIF - Supports 1080 Full-HD multimedia playback - A perfect connection to HD visual effects - Better casual gaming experience with DirectX 10 support Flat-HeatPipe - Excellent Air Convection - Avoid Mechanical issue - Average temperature lower than “52℃” in high loading M-Flash - Faster and Flexible and instant - If BIOS crash, it still can boot from USB Drive - Update BIOS from USB Drive by M-Flash Fucntion USB Safeguard - With the ESD dual-current protection chip, USB Safeguard can ideally protect your motherboard from the potential damage caused by static electricity when inserting USB devices. Blu-Ray Audio Support - The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc - Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers - support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs User Friendly Design - Functions designed with button to be easy use. - Help power-users tweaking process in-chasis enviornment - Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra. MSI Advanced Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. live_update_4 Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating. CrossFireX Support - Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready. - The ultimate multi-GPU performance gaming platform. - Provides 2.7x faster performance than single graphic card solution.
Key Features
MSI H55M-ED55. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB, Memory voltage: 1.5 V. LAN controller: Realtek RTL8111DL, Networking features: Gigabit Ethernet. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI H55M-ED55 LGA 1156 (Socket H) micro ATX (7635-030R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI H55M-ED55 LGA 1156 (Socket H) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI H55M-ED55 LGA 1156 (Socket H) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7635-030R.
