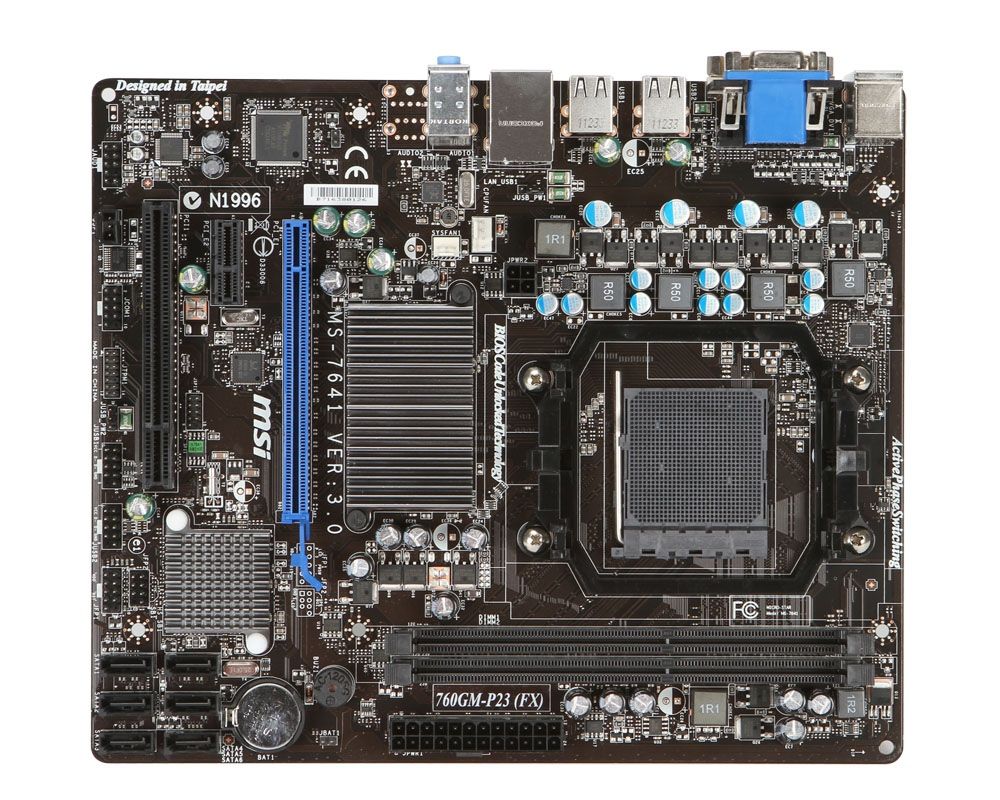

MSI 760GM-P23 (FX) Mainboard AMD 760G Socket AM3+ micro ATX

Specifications

Product Description

Auto OC Genie In the past, users needed to adjust settings for CPU and Memory in BIOS menu to overclock. The relation between these ratios and clocks speeds are extremely complicated, taking up to 30 minutes to find the right settings for an optimized PC. Auto OC Genie simplifies it all into one button press. Where high-end CPUs are usually priced around 1000 USD, Auto OC Genie allows you to take a 200 USD CPU (1/5 the price) to reach the same performance. Your C/P ratio rises up 500% immediately for the ultimate value. Features - The world’s first Auto Overclocking Processor - Upgrade full system performance in 1 sec - Auto detect overclocking settings of CPU and Memory - Compatible with Intel/AMD platform M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. Features - Backup/Restore Your BIOS to/from Any USB Flash Disk - Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process - Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process APS (Active Phase Switching) Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage. Lossless 24-bit/192KHz HD Audio Onboard PC audio gets better! MSI is the first to implement the most high-end HD Audio codecs available. Don’t be fooled by other inferior audio solutions onboard (sometimes you can’t even find the driver!) Only MSI offers the Loss-less 24-bit/192KHz HD Audio function with an incredible 109 SNR dB value to provide the most clear & vivid HD audio quality and support 7.1 channels surround sound playback with a 2-channel independent stereo output (multiple streaming) through the front panel 3.5 inch phone jack. Winki 3 Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time. Features - User friendly & totally free applications - Power on to run applications in 25 seconds - Multi-language interface support i-Charger Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI i-Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the i-Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. Features - Automatically Detect & Charge Your Smart Phone or Tablet - Support Microsoft Windows 98SE/ME/2000/XP/Vista/7 32Bit Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. Features - Automatically Detect the BIOS/Driver/VGA/Utility Update - Support Microsoft Windows XP/Vista/7 32/64bit Unlock CPU Core MSI’s Unlock CPU Core technology, exclusive from MSI, can unlock the hidden cores in the CPU by making a few selections from the BIOS. By unlocking a Phenom II X2 CPU into a Phenom II X4 CPU, users can boost the CPU performance over 104%. In Addition, MSI discovers the ability to unlock Phenom II X4 960T to a 6 core CPU through the same BIOS setting. At same time, MSI was the first who could unlock a 4-core AMD CPU to a 6-core because MSI does not use any "unlock" chip on our mainboards. MSI engineers developed a BIOS technology to unlock cores which can be easy upgraded via new BIOS. Because of this flexible BIOS core unlock feature, MSI can today announce that it made BI

Key Features

MSI 760GM-P23 (FX) Mainboard. Processor manufacturer: AMD, Processor socket: Socket AM3+, Compatible processor series: AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory voltage: 1.5 V. Supported storage drive interfaces: SATA. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
