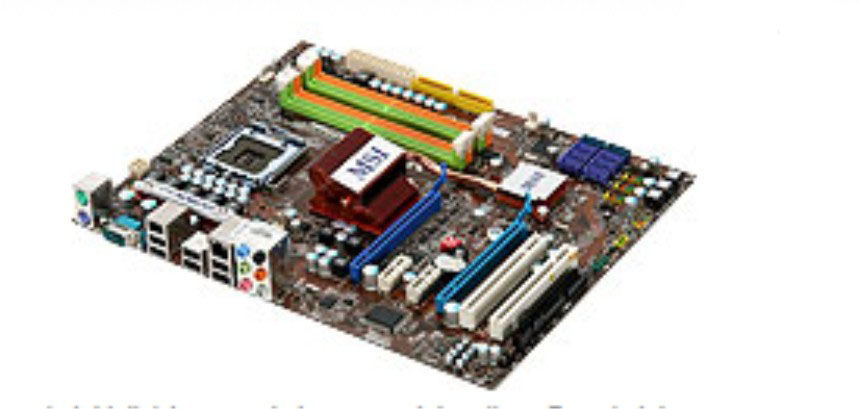

MSI P45 Neo2-FIR LGA 775 (Socket T) ATX
Brand: MSI · SKU: 7558-010R · MPN: 7558-010R · Category: Components
MSI P45 Neo2-FIR, Intel, LGA 775 (Socket T), Intel® Core™2 Duo, Intel® Core™ 2 Extreme, Intel® Core™2 Quad, 16 GB, IEEE1394 / FireWire, Realtek 8111C, ATX. MSI P45 Neo2-FIR LGA 775 (Socket T) ATX (part number 7558-010R) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 244 mm, i/o ports 1 x IDE, pci slots 2, audio chip Realtek ALC888, tpm connector Yes, cd/aux audio in Yes, internal memory 0 GB. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 244 mm |
| I/O ports | 1 x IDE |
| PCI slots | 2 |
| Audio chip | Realtek ALC888 |
| TPM connector | Yes |
| CD/AUX audio in | Yes |
| Internal memory | 0 GB |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Networking features | IEEE1394 / FireWire, Realtek 8111C |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Serial ports quantity | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 16 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 305 mm |
Product Description
- Excellent energy-saving capability and offers high-computing performance. - Provide superior energy-saving function and maintain an ultimate low temperature operation. - Comes with three incredible features. APS (Active Phase Switching) - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. All Solid Capacitors - Longer lifespan than electrolytic capacitors - Endurable to operation under higher frequency & temperature - Avoid exploding capacitors to cause mainboards failure All Shielded Choke - A choke is an inductor responsible for storing power and regulates the current. - All shielded choke could reduce core power loss, lower EMI interference. - Store energy longer at higher frequency, achieving higher efficiency. Easy OC Switch - Help end-users upgrade CPU FSB directly - Buy an essential CPU but want to reach higher performance - Skip the complicated BIOS OC setting and enjoy the higher level CPU performance 2-phase Power - 2-phase Power on Memory/Northbridge - Power Efficient! - Lower Temperature - Max voltage Control VGA Booster - Both graphic channel are from Northbridge(MCH), no more bottleneck issue - Native PCI Express 2.0 - Auto detect & switch in 1 x16 / 2 x8 (CF-X) mode - VGA Booster push the 3D performance up to a new level Dual Core Center - Key components status hardware monitor. - Monitor the CPU status. - Optimize System status define. - Auto speed up with system loading change. The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating. CrossFireX Support - Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready. - The ultimate multi-GPU performance gaming platform. - Provides 2.7x faster performance than single graphic card solution.
Key Features
MSI P45 Neo2-FIR. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Core™2 Duo, Intel® Core™ 2 Extreme, Intel® Core™2 Quad. Maximum internal memory: 16 GB. Networking features: IEEE1394 / FireWire, Realtek 8111C. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888. Width: 244 mm, Depth: 305 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI P45 Neo2-FIR LGA 775 (Socket T) ATX (7558-010R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI P45 Neo2-FIR LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI P45 Neo2-FIR LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7558-010R.
