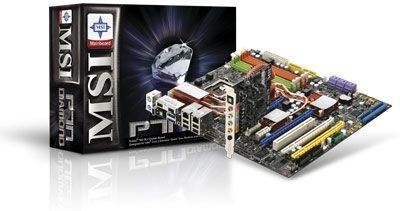

MSI P7N Diamond LGA 775 (Socket T) ATX
Brand: MSI · SKU: 7510-010R · MPN: 7510-010R · Category: Components
MSI P7N Diamond, Intel, LGA 775 (Socket T), Intel® Pentium® D, 8 GB, 0, 1, 0+1, 5, JBOD, ATX. MSI P7N Diamond LGA 775 (Socket T) ATX (part number 7510-010R) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 304 mm, raid levels 0, 1, 0+1, 5, JBOD, tpm connector Yes, expansion slots 1 x PCI 2 x PCI-E x1 4 x PCI-E 2.0 x16, processor socket LGA 775 (Socket T), cpu fan connector Yes, power source type ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 304 mm |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| TPM connector | Yes |
| Expansion slots | 1 x PCI 2 x PCI-E x1 4 x PCI-E 2.0 x16 |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 4 |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel® Pentium® D |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 304 mm x 245 mm |
Product Description
Highly Efficient Circu-Pipe and GreenPower Design The use of selected high-grade components is the common characteristic of the P7N series motherboards. Although the two motherboards have different market segments, they both come with MSIs exclusive Circu-Pipe design. Circu-pipe can effectively reduce the high temperature from the chipset and MOSFET. This design improves the system stability and product life. Processor power supply of P7N series motherboards are base on four phases PWM IC and through MSIs exclusive dual channel design, it can reach more than eight phase power quality and increase the efficiency of power conversion. This not only allows power supply to become more stable, but also reduces the heat produced, especially during huge overclocking. Selected high-quality solid capacitors and POSCAP! The all capacitors on these two motherboards are high-quality solid capacitors that are made in Japan. These capacitors with low impedance and high ripple current and other characteristics provide better filtering effect. To further highlight P7N Diamond products, the PWM capacitors on this motherboard are based on POSCAP. POSCAP (Polymerized Organic Semiconductor Capacitor) is a high grade product recently developed by Sanyo. The look of POSCAP is similar to Tantalum capacitor which is used on motherboards in the past. But it has better ripple current and dissipation factor characteristic. The impedance values of general capacitor will differ due to the operating frequency change. The most commendable of POSCAP is that in all kinds of operating frequencies, this product can maintain low impedance characteristics. So, POSCAP is suitable for motherboards with high-frequency switching power supply. 45nm Processor and 3-way SLI ready! P7N series motherboards are Intel 45nm processor and 3-way SLI ready. The 45nm Quad Core CPU support brings more benefits to multimedia and multitasking by enhancing the performance and reducing the waiting time for any kind of applications. It provides extremely high definition audio/video stream editing and offers higher performance on 3D gaming and professional graphic rendering. MSI design quad PCI-E VGA slot on P7N Diamond for more than the new Nvidia 3-way SLI technology, also comes with PCI-E Gen2 to offer wider bandwidth. This will bring higher 3D gaming resolutions with more detail DX10 effects. Whats more, it also enhances the 3D frame rate to a higher level for more smooth gaming experience.
Key Features
MSI P7N Diamond. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Pentium® D. Maximum internal memory: 8 GB. RAID levels: 0, 1, 0+1, 5, JBOD. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Power source type: ATX. Width: 304 mm, Depth: 245 mm
