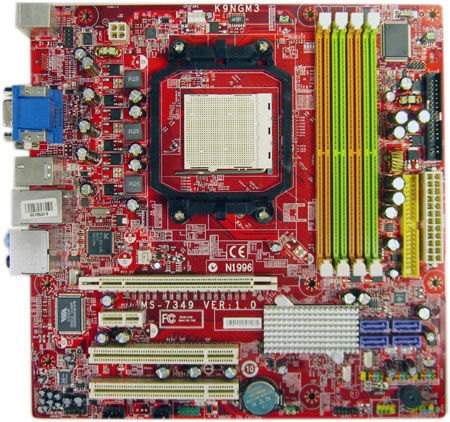

MSI K9NGM3-FIH Socket AM2 micro ATX
Brand: MSI · SKU: 7349-010R · MPN: 7349-010R · Category: Components
MSI K9NGM3-FIH, AMD, Socket AM2, AMD Sempron, 1000 MHz, 8 GB, 0, 1, 0+1, 5, JBOD
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| Microphone in | Yes |
| TPM connector | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1xPCI Express x16, 1xPCI Express x1, 2xPCI |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| RAID controller type | SATA II |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
CPU AMD® Athlon 64 X2, Athlon 64 and Sempron in the Socket AM2 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. FSB HyperTransport supporting speed up to 1GHz (2000MT/s). Chipset NVIDIA® GeForce® 7050 PV/NVIDIA nForce® 630a (MCP68PV) Chipset. Main Memory -Supports dual channel DDR II 533/667/800. -4 DDR2 DIMMs (240pin / 1.8V). -Supports a maximum memory size up to 8GB. Slots -1 PCI Express x16 slot. -1 PCI Express x1 slot. -2 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE -One IDE port by NVIDIA® MCP68PV. -Supports Ultra DMA 66/100/133 mode. -Supports PIO, Bus Master operation mode. -Can connect up to two IDE devices. On-Board SATA -4 SATAII ports by NVIDIA® MCP68PV. -Supports storage and data transfers at up to 300 MB/s. RAID Function SATAII 1~4 supports RAID 0/1/0+1/5 or JBOD mode by NVIDIA® MCP68PV MSI. Audio -Chipset integrated by Realtek® ALC888. -Flexible 7.1-channel audio with jack sensing. -Compliant with Azalia 1.0 Spec. LAN Supports 10/100/1000 Fast Ethernet by Realtek RTL8211BL. IEEE1394 -Chipset integrated by VIA® VT6308P. -Transfer rate is up to 400Mbps. TPM Supports TPM 1.2.
Key Features
MSI K9NGM3-FIH. Processor manufacturer: AMD, Processor socket: Socket AM2, Compatible processor series: AMD Sempron. Maximum internal memory: 8 GB. RAID levels: 0, 1, 0+1, 5, JBOD. Networking features: 10/100/1000 Mbps. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K9NGM3-FIH Socket AM2 micro ATX (7349-010R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K9NGM3-FIH Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K9NGM3-FIH Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7349-010R.
