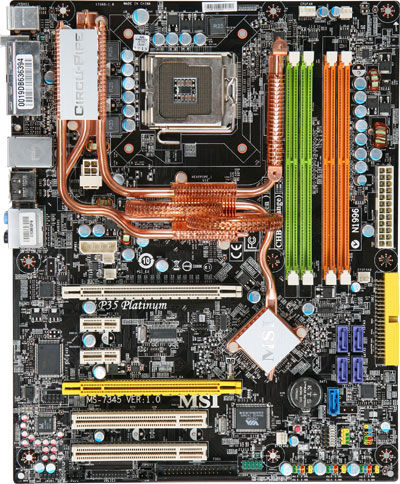

MSI P35 Platinum LGA 775 (Socket T) ATX
Brand: MSI · SKU: 7345-010 · MPN: 7345-010 · Category: Components
MSI P35 Platinum, Intel, LGA 775 (Socket T), 1333 MHz, 8 GB, 0, 1, 5, ATX
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| RAID levels | 0, 1, 5 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 2xPCI-E (x1) 2xPCI |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 5 |
| Firewire (IEEE 1394) ports | 1 |
| Chassis intrusion connector | Yes |
| Front panel audio connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
CPU - Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package. - Supports Intel® Yorkfield, Wolfdale. - Supports FSB 1333/1066/800 MHz. Chipset - Intel® P35 Chipset - Supports FSB 800/1066/1333MHz. - Supports dual channel, DDR2 667/800/1066 (OC). Intel® ICH9R Chipset - Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports. - 4 SATAII with 2 eSATA ports with transfer rate up to 3Gb/s. - PCI Master v2.3, I/O APIC. - ACPI 2.0 compliant. - Serial ATA RAID 0/1/5/10. - Integrated AHCI controller. Main Memory - Supports four unbuffered DIMM of 1.8 Volt DDR2 SDRAM - Supports up to 8GB memory size. - Supports dual channel DDR2 memory architecture. - Supports DDR2 667/800/1066 (OC) memory interface. Slots - Two PCI Express 16X slots with 1x16 and 1x4 operations (PCI Express Bus SPEC V1.0a compliant; supports CrossFire Technology) - Two PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant) - Two 32-bit v2.3 master PCI bus slots. - Support 3.3v/5v PCI bus interface. On-Board IDE/SATA - One Ultra DMA 66/100/133 IDE controller integrated in Marvell® 88SE6111. - Supports PIO, Bus Master operation modes. - Can connect up to two Ultra ATA drives. SATAII controller integrated in ICH9R and Marvell® 88SE6111 chipest - Up to 300MB/sec transfer speed. - Supports four SATAII ports and two eSATA ports by ICH9R. - Supports AHCI controller with SATA RAID 0/1/5/10. - Supports one SATAII port by 88SE6111.
Key Features
MSI P35 Platinum. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor system buses supported: 1333 MHz. Maximum internal memory: 8 GB. RAID levels: 0, 1, 5. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Power source type: ATX. Width: 305 mm, Depth: 245 mm
