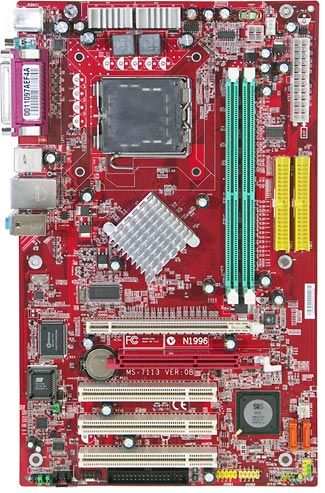

MSI 649 NEO-V motherboard LGA 775 (Socket T) ATX
Brand: MSI · SKU: 649 NEO-V · MPN: 649 NEO-V · Category: Components
MSI 649 NEO-V, Intel, LGA 775 (Socket T), 800 MHz, 2 GB, Fast Ethernet 10/100 Mb/s, ATX. MSI 649 NEO-V motherboard LGA 775 (Socket T) ATX (part number 649 NEO-V) is an enterprise components product available from Server Tech Central. Key specifications include audio output 6-channel ADI AD1888, expansion slots 1x PCI Express x16 1x AGR AGP VGA 2x PCI 2.3 32-bit PCI, processor socket LGA 775 (Socket T), power source type ATX, networking features Fast Ethernet 10/100 Mb/s, processor manufacturer Intel, maximum internal memory 2 GB, motherboard form factor ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| I/O ports | 1 x Parallel 1 x Serial port 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O (Line-in/Line-out/MIC) 4 x USB 2.0 1 x RJ45 LAN Jack |
|---|---|
| Audio output | 6-channel ADI AD1888 |
| Expansion slots | 1x PCI Express x16 1x AGR AGP VGA 2x PCI 2.3 32-bit PCI |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| Networking features | Fast Ethernet 10/100 Mb/s |
| Processor manufacturer | Intel |
| Maximum internal memory | 2 GB |
| Motherboard form factor | ATX |
| Processor system buses supported | 800 MHz |
| Warranty | 3-Year Warranty |
Product Description
CPU Supports Intel® Pentium 4/Celeron D processors in LGA775 package. Supports up to Pentium 4 5xx, 6xx(EM64T) and Celeron D 3xx sequence processor. Supports FSB 533/800MHz Chipset SiS® 649 Chipset Supports FSB 533/800MHz. Supports PCI Express x16 interface. Supports DDR333/400 memory interface. SiS® 965L Chipset Hi-Speed USB (USB2.0) controller, 480Mb/sec, 8 ports. 2 Serial ATA ports with transfer rate up to 1.5Gb/s 2 channel Ultra ATA 66/100/133 bus Master IDE controller. PCI Master v2.3, I/O APIC. Supports both ACPI and legacy APM power management. Main Memory Supports two memory banks using two 184-pin unbuffered DDR DIMM. Supports up to 2GB memory size without ECC. Supports DDR333/400. Slots One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant). One AGR (Advance Graphics Riser) slot for compatible AGP VGA cards. Two PCI 2.3 32-bit PCI bus slots (support 3.3v/5v PCI bus interface). The AGR slot is a special design that only supports compatible AGP VGA cards. For more detailed information on compatible AGP VGA cards, please refer here On-Board IDE / SATA Dual IDE controllers integrated in SiS® 965L Support P/O, Bus Master, Ultra DMA66/100/133 operation. Can connect up to four IDE devices. Dual SATA controllers integrated in SiS® 965L Up to 150MB/sec transfer speeds. Can connect up to two Serial ATA drives. Audio AC97 link controller integrated in 965L chipset. 6-channel audio codec ADI AD1888. Compliance with AC97 v2.3 Spec. Meet PC2001 audio performance requirement. LAN Broadcom AC131 Integrated Fast Ethernet PHY. Supports 10Mb/s and 100Mb/s. Compliance with PCI 2.2. Supports ACPI Power Management. Internal I/O Connectors ATX 24-Pin power connector 4-pin ATX 12V power connector CPU / System FAN connectors 1 x Floppy disk drive connector 2 x Serial ATA connectors 2 x ATA133 IDE drive connectors Front panel connector Front panel audio connector 2 x USB 2.0 connector support additional 4 ports CD-in connector Clear CMOS jumper Back Panel I/O Ports 1 x Parallel 1 x Serial port 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O (Line-in/Line-out/MIC) 4 x USB 2.0 1 x RJ45 LAN Jack BIOS AMI 2Mb BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Key Features
MSI 649 NEO-V. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor system buses supported: 800 MHz. Maximum internal memory: 2 GB. Networking features: Fast Ethernet 10/100 Mb/s. Motherboard form factor: ATX, Power source type: ATX. Audio output: 6-channel ADI AD1888
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI 649 NEO-V motherboard LGA 775 (Socket T) ATX (649 NEO-V) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI 649 NEO-V motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI 649 NEO-V motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 649 NEO-V.
