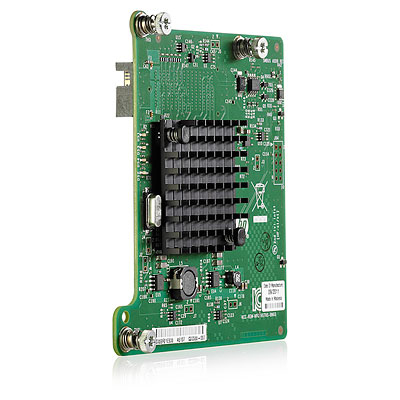

HP Ethernet 1Gb 4-port 366M Adapter Internal 2000 Mbit/s
Brand: HP · SKU: 615729B21 · MPN: 615729B21 · Category: Components
HP Ethernet 1Gb 4-port 366M Adapter, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s
Specifications
| Depth | 241.3 mm |
|---|---|
| Width | 57.2 mm |
| Height | 190.5 mm |
| Weight | 450 g |
| Internal | Yes |
| Interface | Ethernet |
| Full duplex | Yes |
| Ethernet LAN | Yes |
| Host interface | PCI Express |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Maximum data transfer rate | 2000 Mbit/s |
| Power consumption (typical) | 3.1 W |
| Warranty | 3-Year Warranty |
| Weight | 450 g |
| Dimensions | 57.2 mm x 241.3 mm x 190.5 mm |
Product Description
The HP 366M is a PCIe 2.1 quad-port 1Gb Ethernet mezzanine network adapter for select HP ProLiant BladeSystem c-Class Gen8 servers. Based on the bridgeless Intel® I350 controller, it is the follow-on adapter to the HP NC364m. The total aggregate throughput of 4Gbps meets the needs of customers wanting high bandwidth but not yet ready to move to 10 Gigabit Ethernet. Support for VMware NetQueue, Microsoft VMQ, and Intel VMDq meets the performance demands of consolidated virtual workloads. Other features supported on the HP 366M include RSS, PXE, checksum offload, VLAN, jumbo frames, iSCSI acceleration and iSCSI remote boot. First quad-port 1GbE mezzanine adapter for HP BladeSystem Gen8 servers offers network port density. New bridgeless quad-port design with PCIe 2.1 support offers greater throughput for I/O intensive applications like virtualization, firewall and other security, network segmentation, and other bandwidth hungry applications. Total aggregate throughput of 8 Gbps full duplex meets the needs for customers who need high bandwidth but are not yet ready to move to 10 Gigabit Ethernet. Intel® Integrated I/O with Data Direct I/O reduces system power, increases I/O performance, and reduces latency, while DMA Coalescing enables the adapter to remain in a low power state for a long time. Virtualization is optimized by support for VMware NetQueue, Microsoft VMQ, Intel VMDq, and VLAN support with eight queues per port and port partitioning. Advanced features like PXE boot, jumbo frames, VLAN support, and RSS increase network performance.
Key Features
HP Ethernet 1Gb 4-port 366M Adapter. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP Ethernet 1Gb 4-port 366M Adapter Internal 2000 Mbit/s (615729B21) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP Ethernet 1Gb 4-port 366M Adapter Internal 2000 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP Ethernet 1Gb 4-port 366M Adapter Internal 2000 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 615729B21.
