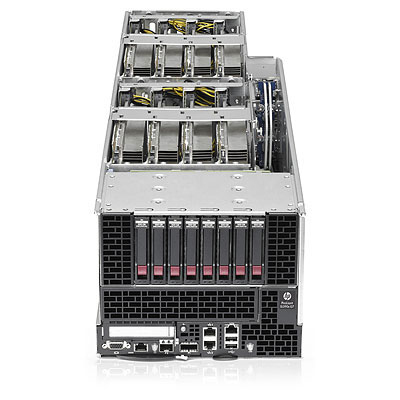

HP ProLiant SL390s G7 Intel® 5520 Socket B (LGA 1366) Rack (4U) Black, Grey
Brand: HP · SKU: 612227-B21 · MPN: 612227-B21 · Category: Servers
HP ProLiant SL390s G7, Intel® 5520, Socket B (LGA 1366), Intel, 3.6 GHz, Intel® Xeon®, E5500, E5600, L5600, X5600
Specifications
| ECC | Yes |
|---|---|
| RAID levels | 0, 1, 10 |
| Chassis type | Rack (4U) |
| Product colour | Black, Grey |
| AC input voltage | 90 - 264 V |
| Processor family | Intel |
| Processor socket | Socket B (LGA 1366) |
| Intel Xeon series | E5500, E5600, L5600, X5600 |
| AC input frequency | 47 - 63 Hz |
| Optical drive type | No |
| Storage controller | HP Smart Array B110i |
| Motherboard chipset | Intel® 5520 |
| Graphics card family | AMD |
| Maximum RDIMM memory | 192 GB |
| Maximum UDIMM memory | 48 GB |
| Number of DIMM slots | 12 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 8 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| PCI Express slots version | 2.0 |
| Storage temperature (T-T) | -30 - 60 °C |
| Warranty | 3-Year Warranty |
Product Description
The HP ProLiant SL390s G7 Server is part of a new family, HP ProLiant SL6500 Scalable System, of HP server solutions optimized for scale-out customers to greatly reduce costs, maximize power efficiency, by sharing power supplies and fans, and maintain total flexibility. The SL390s G7 consists of three different server trays, each with their own benefits. The 1U half width tray is designed for compute density, and the 2U and 4U half width trays are designed for GPU density, support is up to 3 GPUs in the 2U and 8 GPUs in the 4U tray. They each use the same system board and go into the 4U HP ProLiant s6500 Chassis. The SL390s G7 is a two socket Intel server with 12 DDR3 DIMM sockets, two 1 Gb Ethernet ports, one 10 Gb Ethernet port (SFP+) and an option on board Infiniband port (QSFP). The s6500 Chassis is 4U and can accommodate up to eight half width servers, all individually serviceable. Also, it can support up to four power supplies, non redundant or hot plug redundant fans. Outstanding Compute Performance and Low Latency • Support for one low latency ConnectX-2-based 10 Gb Ethernet port (SFP+) and optional QDR Infiniband port (QSFP). Support for two NC362i-based 1 Gb Ethernet ports Compute and GPU Density • 1U half width tray offers compute density, offering twice the number of servers per U Enterprise Management • Integrated Lights-Out 3 (iLO) allows powerful, hardware-based remote administration and control from a standard web browser to conserve valuable IT staff resources Chassis Redundancy and Efficiency • Chassis uses shared power and cooling for better efficiencies
Key Features
HP ProLiant SL390s G7. Motherboard chipset: Intel® 5520, Processor socket: Socket B (LGA 1366), Processor family: Intel. Supported DIMM module capacities: 16GB, 4GB, Maximum RDIMM memory: 192 GB, Maximum UDIMM memory: 48 GB. Storage drive sizes supported: 2.5", Supported storage drive interfaces: Serial Attached SCSI (SAS), Serial ATA, Storage controller: HP Smart Array B110i. Maximum graphics card memory: 64 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-TX, 100BASE-TX, 10BASE-T
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HP ProLiant SL390s G7 Intel® 5520 Socket B (LGA 1366) Rack (4U) Black, Grey (612227-B21) is 100% genuine HP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HP ProLiant SL390s G7 Intel® 5520 Socket B (LGA 1366) Rack (4U) Black, Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HP ProLiant SL390s G7 Intel® 5520 Socket B (LGA 1366) Rack (4U) Black, Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 612227-B21.
