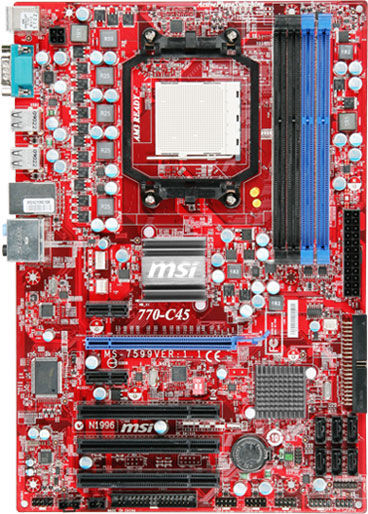

MSI 770-C45 AMD 770 Socket AM3 ATX
Brand: MSI · SKU: 601-7599-020 · MPN: 601-7599-020 · Category: Components
MSI 770-C45, AMD, Socket AM3, 16 GB, 0, 1, 0+1, Realtek RTL8111D(L), 10/100/1000 Mbit. MSI 770-C45 AMD 770 Socket AM3 ATX (part number 601-7599-020) is an enterprise components product available from Server Tech Central. Key specifications include depth 210 mm, width 305 mm, pci slots 3, raid levels 0, 1, 0+1, audio output ALC888S, microphone in Yes, lan controller Realtek RTL8111D(L), cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 3 |
| RAID levels | 0, 1, 0+1 |
| Audio output | ALC888S |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111D(L) |
| CD/AUX audio in | Yes |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 770 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 210 mm |
Product Description
Specifications CPU - 64bit AMD Phenom II CPU. Hyper Transport Bus - HyperTransport 3.0 supporting speed up to 5200MT/s. Chipset - AMD 770 and SB710 Chipset. Main Memory - Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600 SDRAM, 16GB Max. Slots - 1 PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant). - 2 PCI Express x1 slots. - 3 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE - One IDE port by AMD SB710. - Supports Ultra DMA 66/100/133 mode. - Supports PIO, Bus Master operation mode. - Can connect up to two IDE devices. On-Board SATA - 6 SATA II ports by AMD SB710. - Supports storage and data transfers at up to 3Gb/s. RAID Function - SATA II 1~6 support RAID 0, 1, or 0+1 mode by AMD SB710. Audio - Chipset integrated by Realtek ALC888S. - True Blu-ray Audio Support. - Flexible 8-channel audio with jack sensing. - Compliant with Azalia 1.0 Spec. LAN - Realtek PCI-E GbLAN controller 8111DL. - Integrated Fast Ethernet MAC and PHY in single chip. - Supports 10Mb/s, 100Mb/s and 1000Mb/s. - Compliance with PCI-Express Bus specification v1.0a.
Key Features
MSI 770-C45. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB. RAID levels: 0, 1, 0+1. LAN controller: Realtek RTL8111D(L), Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels
