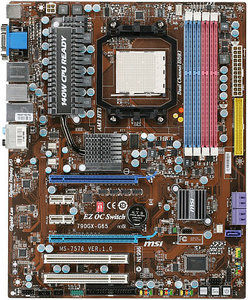

MSI 790GX-G65 AMD 790GX Socket AM3 ATX
Brand: MSI · SKU: 601-7576-010 · MPN: 601-7576-010 · Category: Components
MSI 790GX-G65, AMD, Socket AM3, 16 GB, 1.5 V, Non-ECC, Dual. MSI 790GX-G65 AMD 790GX Socket AM3 ATX (part number 601-7576-010) is an enterprise components product available from Server Tech Central. Key specifications include depth 304 mm, width 245 mm, pci slots 2, audio chip Realtek ALC889, tpm connector Yes, lan controller Realtek RTL8111DL, memory voltage 1.5 V, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 304 mm |
|---|---|
| Width | 245 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC889 |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111DL |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Controller type | Dual |
| S/PDIF out port | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 6 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD 790GX |
| Networking features | 10/100/1000 Mbit/s |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 304 mm |
Product Description
Features APS (Active Phase Switching) - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. MAX FSB - Turn OC Beginner to OC Expert!! - Save your time of trying - Achieve OC goal in short time M-Flash - Faster and Flexible and instant - If BIOS crash, it still can boot from USB Drive - Update BIOS from USB Drive by M-Flash Fucntion All Solid Capacitors - Longer lifespan than electrolytic capacitors - Endurable to operation under higher frequency & temperature - Avoid exploding capacitors to cause mainboards failure All Shielded Choke - A choke is an inductor responsible for storing power and regulates the current. - All shielded choke could reduce core power loss, lower EMI interference. - Store energy longer at higher frequency, achieving higher efficiency. Easy OC Switch - Help end-users upgrade CPU FSB directly - Buy an essential CPU but want to reach higher performance - Skip the complicated BIOS OC setting and enjoy the higher level CPU performance Sideport Memory - equipped additional 1Gbit (128MB) DDR3 1333MHz IGP memory to accelerate onboard VGA 3D performance up to 15%. - Independent IGP memory can reduce the consumption of system memory. Blu-Ray Audio Support - The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc - Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers - support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs M-Connectors - Easy connect to front panel & chassis cable - 2x USB, IEEE 1394, front panel (JFP1/2)& audio(JAUD1) M-connector in the package - Easy to tell the definition of each pin User Friendly Design - Functions designed with button to be easy use. - Help power-users tweaking process in-chasis enviornment - Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra. MSI Advanced Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. CrossFireX Support - Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready. - The ultimate multi-GPU performance gaming platform. - Provides 2.7x faster performance than single graphic card solution. Norton Internet Security™ 2009 60 days Trial -Blocks online identity theft by phishing Web sites -Detects and eliminates spyware -Removes viruses and Internet worms automatically -Protects against hackers Cool'n'quiet AMD Cool'n'Quiet™ technology that based on famous PowerNow™ technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.
Key Features
MSI 790GX-G65. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, Memory voltage: 1.5 V, ECC сompatibility: Non-ECC. Maximum graphics card memory: 1500 MB. LAN controller: Realtek RTL8111DL, Networking features: 10/100/1000 Mbit/s. Motherboard form factor: ATX, Motherboard chipset: AMD 790GX, Audio output channels: 5.1 channels
