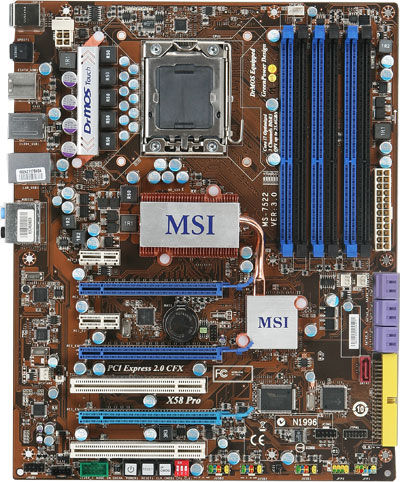

MSI X58 Pro Socket B (LGA 1366) ATX
Brand: MSI · SKU: 601-7522-A10 · MPN: 601-7522-A10 · Category: Components
MSI X58 Pro, Intel, Socket B (LGA 1366), 24 GB, Gigabit Ethernet, ATX, 7.1 channels. MSI X58 Pro Socket B (LGA 1366) ATX (part number 601-7522-A10) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 244 mm, audio chip Realtek ALC888S, microphone in Yes, tpm connector Yes, cd/aux audio in Yes, s/pdif out port Yes, processor socket Socket B (LGA 1366). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC888S |
| Microphone in | Yes |
| TPM connector | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| Processor socket | Socket B (LGA 1366) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 6 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 24 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 7 |
| Ethernet LAN (RJ-45) ports | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 305 mm |
Product Description
Dr.MOS - Excellent energy-saving capability and offers high-computing performance. - Provide superior energy-saving function and maintain an ultimate low temperature operation. - Comes with three incredible features. APS (Active Phase Switching) - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. All Solid Capacitors - Longer lifespan than electrolytic capacitors - Endurable to operation under higher frequency & temperature - Avoid exploding capacitors to cause mainboards failure All Shielded Choke - A choke is an inductor responsible for storing power and regulates the current. - All shielded choke could reduce core power loss, lower EMI interference. - Store energy longer at higher frequency, achieving higher efficiency. Easy OC Switch - Help end-users upgrade CPU FSB directly - Buy an essential CPU but want to reach higher performance - Skip the complicated BIOS OC setting and enjoy the higher level CPU performance M-Connectors - Easy connect to front panel & chassis cable - 2x USB, IEEE 1394, front panel (JFP1/2)& audio(JAUD1) M-connector in the package - Easy to tell the definition of each pin User Friendly Design - Functions designed with button to be easy use. - Help power-users tweaking process in-chasis enviornment - Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra. MSI Advanced Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. CrossFireX Support - Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready. - The ultimate multi-GPU performance gaming platform. - Provides 2.7x faster performance than single graphic card solution. Norton Internet Security™ 2008 60 days Trial - Blocks online identity theft by phishing Web sites - Detects and eliminates spyware - Removes viruses and Internet worms automatically - Protects against hackers
Key Features
MSI X58 Pro. Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366). Maximum internal memory: 24 GB. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888S. Width: 244 mm, Depth: 305 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI X58 Pro Socket B (LGA 1366) ATX (601-7522-A10) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI X58 Pro Socket B (LGA 1366) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI X58 Pro Socket B (LGA 1366) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 601-7522-A10.
