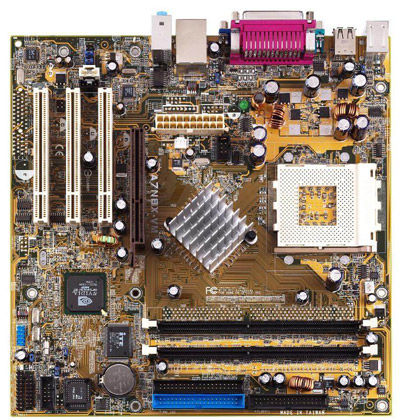

ASUS A7N8X-VM micro ATX
Brand: ASUS · SKU: 5854 · MPN: 5854 · Category: Components
ASUS A7N8X-VM, 2 GB, Integrated 10/100 Mbps LAN controller + Realtek PHY, micro ATX, ATX, Drivers ASUS PC Probe Trend Micro PC-cillin 2002 anti-virus software (OEM version) ASUS LiveUpdate..., 2 x UltraDMA 133/100. ASUS A7N8X-VM micro ATX (part number 5854) is an enterprise components product available from Server Tech Central. Key specifications include audio output Realtek ALC650 6-channel CODEC, expansion slots AGP8X (1.5V), 3 x PCI, power source type ATX, networking features Integrated 10/100 Mbps LAN controller + Realtek PHY, maximum internal memory 2 GB, motherboard form factor micro ATX, controller interface type 2 x UltraDMA 133/100. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| I/O ports | 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 1 x RJ45 4 x USB 2.0/1.1 |
|---|---|
| Audio output | Realtek ALC650 6-channel CODEC |
| Expansion slots | AGP8X (1.5V), 3 x PCI |
| Bundled software | Drivers ASUS PC Probe Trend Micro PC-cillin 2002 anti-virus software (OEM version) ASUS LiveUpdate Utility |
| Power source type | ATX |
| Networking features | Integrated 10/100 Mbps LAN controller + Realtek PHY |
| Maximum internal memory | 2 GB |
| Motherboard form factor | micro ATX |
| Controller interface type | 2 x UltraDMA 133/100 |
| Warranty | 3-Year Warranty |
Product Description
This nForce2 IGP based motherboard supports dual-channel DDR400 memory for the best performance. AGP 8X standard and integrated GeForce4 MX graphics elevate your video experience. Together with onboard LAN and audio, the A7N8X-VM is a quality solution you can count on. Introduction This nForce2 IGP based motherboard supports dual-channel DDR400 memory for the best performance. AGP 8X standard and integrated GeForce4 MX graphics elevate your video experience. Together with onboard LAN and audio, the A7N8X-VM is a quality solution you can count on. Dual-channel DDR400 The 128-bit dual-channel memory architecture eliminates memory bandwidth bottlenecks, creating a balanced architecture with peak bandwidths up to 6.4GB/s -- twice the performance of single channel designs. Note: Dual-channel DDR400 requires an AGP graphics card. Dual-channel DDR333/266/200 supported with AGP or integrated graphics. AGP 8X Technology AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MT/s, AGP8X is twice as fast as AGP4X. Integrated GeForce4 MX GPU Integrated GeForce4 MX GPU, a second-generation mainstream GPU, to deliver best-of-class graphics for high texture content and scene complexity. DVO (Digital video output) interface DVO interface to a DVI transmitter and TV encoder offering simultaneous digital display and TV output. Enjoy nVIEW dual-display with the separately purchased AGP-NV-DVI card and TV out card. ASUS MyLogo2 You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. ASUS C.O.P. (CPU Overheating Protection) ASUS C.O.P. (CPU Overheating Protection) is a hardware protection circuit that automatically shuts down the system power before temperatures go high enough to permanently damage our CPU. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required. NVIDIA 10/100Mbps LAN NVIDIA 10/100Mbps LAN enhanced with an ACPI management function to provide efficient power management for advanced operating systems. It also provides a remote wake-up function to increase cost-efficiency in network maintenance and management. S/PDIF in / out interface Enjoy complete 5.1 audio with the separately purchased S/PDIF-in/out module for easy connectivity between your motherboard and Home Theater system. 6-channel PCI Audio The A7N8X-VM uses an onboard C-Media 8738 audio controller that lets you enjoy high-quality 6-channel audio without having to buy advanced sound cards.
Key Features
ASUS A7N8X-VM. Maximum internal memory: 2 GB. Networking features: Integrated 10/100 Mbps LAN controller + Realtek PHY. Motherboard form factor: micro ATX, Power source type: ATX. Bundled software: Drivers ASUS PC Probe Trend Micro PC-cillin 2002 anti-virus software (OEM version) ASUS LiveUpdate.... Controller interface type: 2 x UltraDMA 133/100, Audio output: Realtek ALC650 6-channel CODEC
