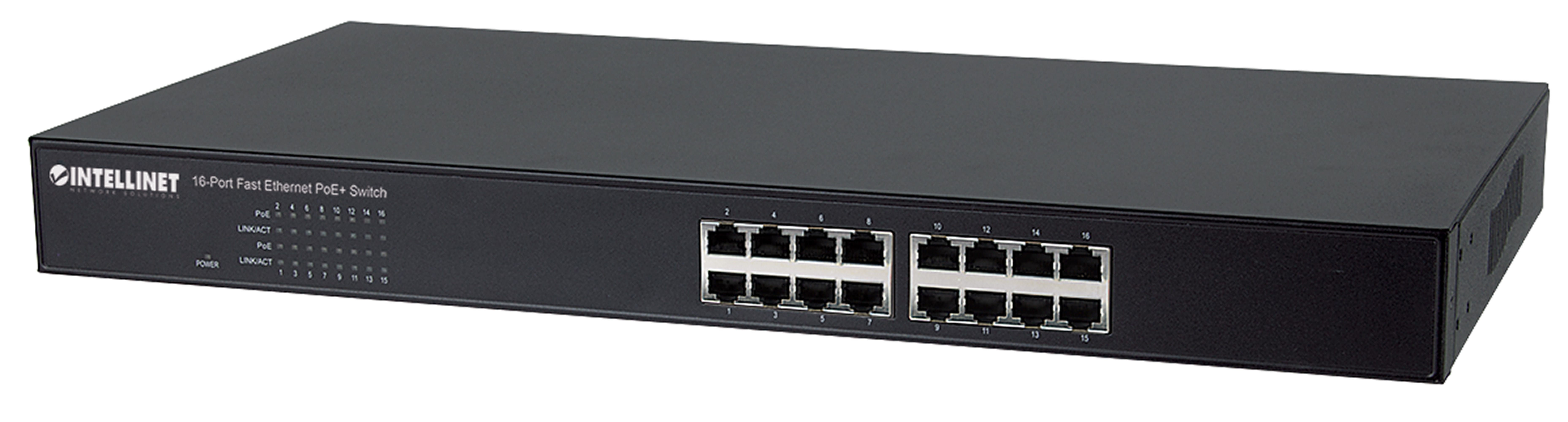

Intellinet 16-Port Fast Ethernet PoE+ Switch, 16 x PoE IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE) ports, Endspan, 19" Rackmount (Euro 2-pin plug)

Specifications

Product Description

Deliver Power over Ethernet to remote devices. The Intellinet Network Solutions PoE+ Office Switch is equipped with 16 10/100Base-TX Fast Ethernet ports, all of which support 802.3af/at Power over Ethernet (PoE/PoE+). Besides being a versatile network LAN switch, it also provides a Power over Ethernet option that supplies power injection to 802.3af/at-compliant devices such as IP phones, wireless access points and network cameras. Power over Ethernet 802.3at The Intellinet Network Solutions 16-Port Fast Ethernet Rackmount PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE 802.3af- or IEEE 802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimises the unsightly clutter caused by power supplies and adapters. Any mix of PoE and non-PoE devices is supported. Thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. Optimum Performance Besides providing Power over Ethernet functionality, the switch's auto features make installation Plug and Play and hassle free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10 or 100 Mbps) and intelligently adjusts for compatibility and optimal performance. * Total PoE budget for this switch is 240 watts. Per-port average power distribution is 15 watts; maximum per-port power usage cannot exceed 30 watts.

Key Features

Intellinet 16-Port Fast Ethernet PoE+ Switch, 16 x PoE IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE) ports, Endspan, 19" Rackmount (Euro 2-pin plug). Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4096 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
